Главная
Mercedes
BUS
S 415 GT-HD
632.131
84 TRUNKS AND CASES

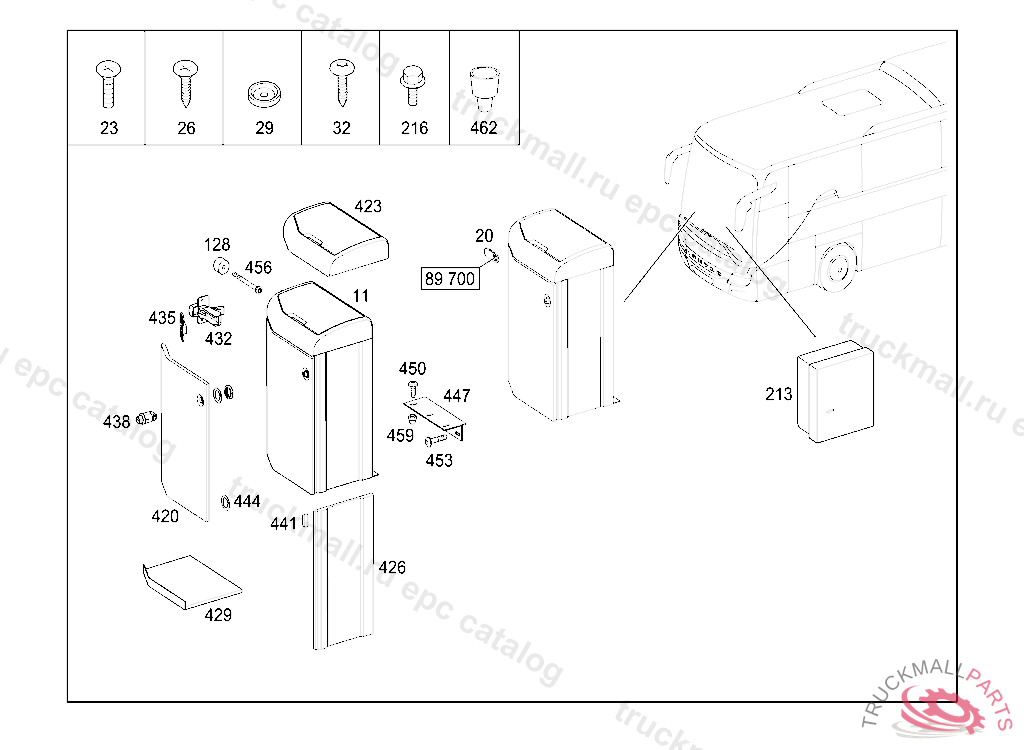

125 STORAGE BOX AND LITTER-BIN IL. 1

Mercedes A0009985340 - ANSCHLAGPUFFER

S 415 GT-HD 632.131

84 TRUNKS AND CASES - 125 STORAGE BOX AND LITTER-BIN IL. 1

Поз.
Артикул
Описание
11
A6298400404
WARDROBE
11
A6328404404
DRIVER'S CABINET TOUR GUIDE CABINET
11
A6328404504
DRIVER'S CABINET TOUR GUIDE CABINET FUER KAFFEEMASCHINE
11
A6298400004
WARDROBE
11
A6328400504
WARDROBE DRIVER'S WARDROBE
11
A6328400404
WARDROBE DRIVER'S WARDROBE
11
A6328400304
WARDROBE DRIVER'S WARDROBE
20
A0009889260
LATCH PLATE
23
Q0100097069
WOOD SCREW3 X 1 MM
26
N000000000840
TAPPING SCREW4.8X38
29
A0009902869
WASHER
32
N000000001091
TAPPING SCREW4,8X60
128
A6299870040
RUBBER BUFFER
128
A0009982540
STOP BUFFER
213
A0008401402
VALUABLES COMPARTMENT
216
N910105010006
SCREWM 10X20
420
A6328430087
CABINET DOOR
420
A0008430887
CABINET DOOR
423
A0008440039
COVER
423
A6328400725
HOUSING COVER
426
A0009837280
CARPET. PLYWOOD10MM, ABMESSUNG ANGEBEN
429
A0008430257
CABINET BOTTOM
429
A0008430157
CABINET BOTTOM
429
A0009837380
PLYWOOD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
432
A0008432151
HINGE
432
A0008460151
HINGE DEGREES: 170
435
A0008460011
PLATE
438
A0009881643
LOCK
441
A0008460157
END PIECE
444
A0009985340
BUFFER STOP
447
A6328400214
BRACKET
450
A0009901129
SCREWM 8X22, T40
453
A0009901729
SCREWM8X40
456
A0009901829
SCREWM8X75T40
456
N000000003940
HEXALOBULAR BOLTM 8 X 100
459
N000000003102
NUT WITH COVER M8
462
A0009973364
FILLER NECK
999
A0009945860
SPRING COTTER
999
A0019902056
SPRING NUTDM 4
999
A0019912971
MOUNTING CLIP
999
A0079893571
ADHESIVE THREAD LOCK 50G
999
A6298700088
ELECTRICAL WIRING HARNESS FOR COVER
999
A6298700188
ELECTRICAL WIRING HARNESSFUER BUSADAPTER
999
A6298700288
ELECTRICAL WIRING HARNESS FOR INNER MEMBER
