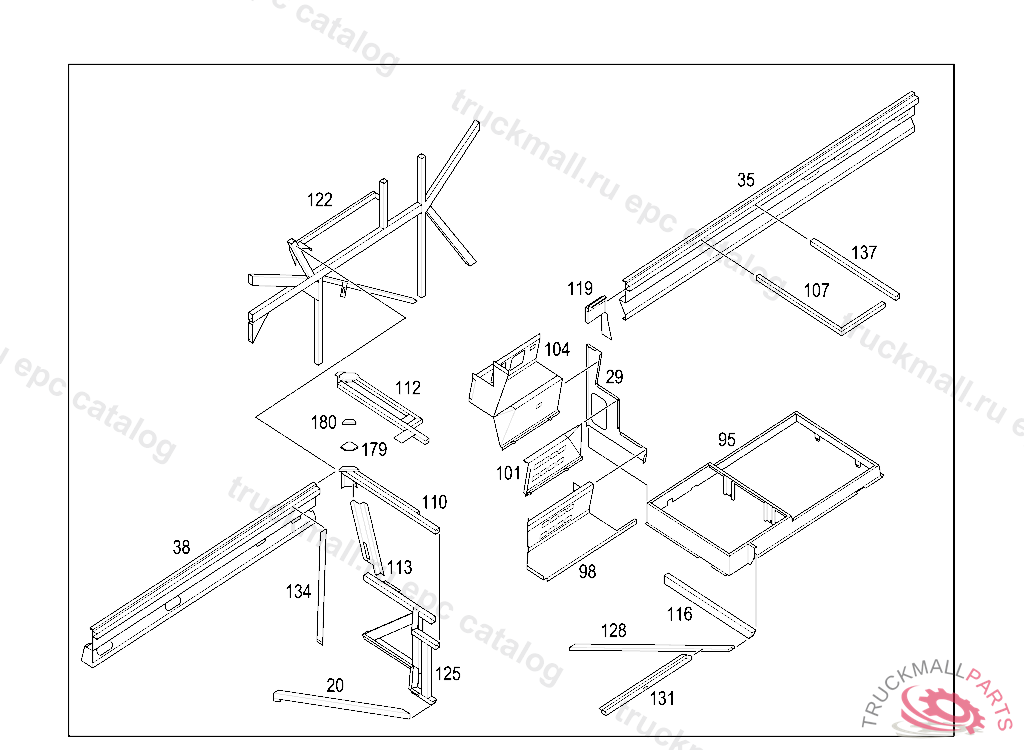

Mercedes A6296600822 - ZB RAHMENTEIL RE OB

S 415 GT-HD 632.131

66 INSTALLATIONS - 034 CENTRAL ENTRANCE IL. 8

Поз.
Артикул
Описание
20
A6296601030
SUPPORT
20
A6296600930
SUPPORT BOTTOM
29
A6296600636
SIDE PANEL
35
A6296100515
SIDE MEMBER
35
A6326113623
SIDE MEMBER
35
A6326113423
SIDE MEMBER
35
A6296100315
SIDE MEMBER
38
A6296100615
SIDE MEMBER REAR RIGHT 2427LG
38
A6296100415
SIDE MEMBER REAR RIGHT 2210LG
38
A6326106115
SIDE MEMBER
38
A6326106215
SIDE MEMBER
95
A6296600378
FRAME PART
98
A6296600528
STEP
98
A6326602928
ROCKER PANEL BOTTOM
101
A6326603428
ROCKER PANEL CENTRAL
101
A6296600628
STEP
104
A6326603928
ROCKER PANEL TOP
104
A6296606128
ROCKER PANEL TOP
107
A6326600243
SUPPORT
110
A6296607922
FRAME , UP TO IDENT NO. WKK 632131 13 000284 EXCEPT FOR WKK 632131 13 000278
110
A6296600068
PEDESTAL
110
A6296600822
FRAME PART935LG
112
A6296600168
PEDESTAL
113
A6296660726
SUPPORT655LG
113
A6326663026
SUPPORT
116
A6296660210
SUPPORT
119
A6326605830
SUPPORT
119
A6296601023
FRAME PART TOP
122
A6326600943
SUPPORT
122
A6326602430
SUPPORT
122
A6326603430
SUPPORT
125
A6296600330
SUPPORT
128
A6296662532
STRUT BOTTOM L1160MM
131
A6296662010
SUPPORT BOTTOM 852LG
134
A6296664732
STRUT
137
A6296664010
SUPPORT
179
A6296114156
PLATE
180
A6296114256
PLATE
