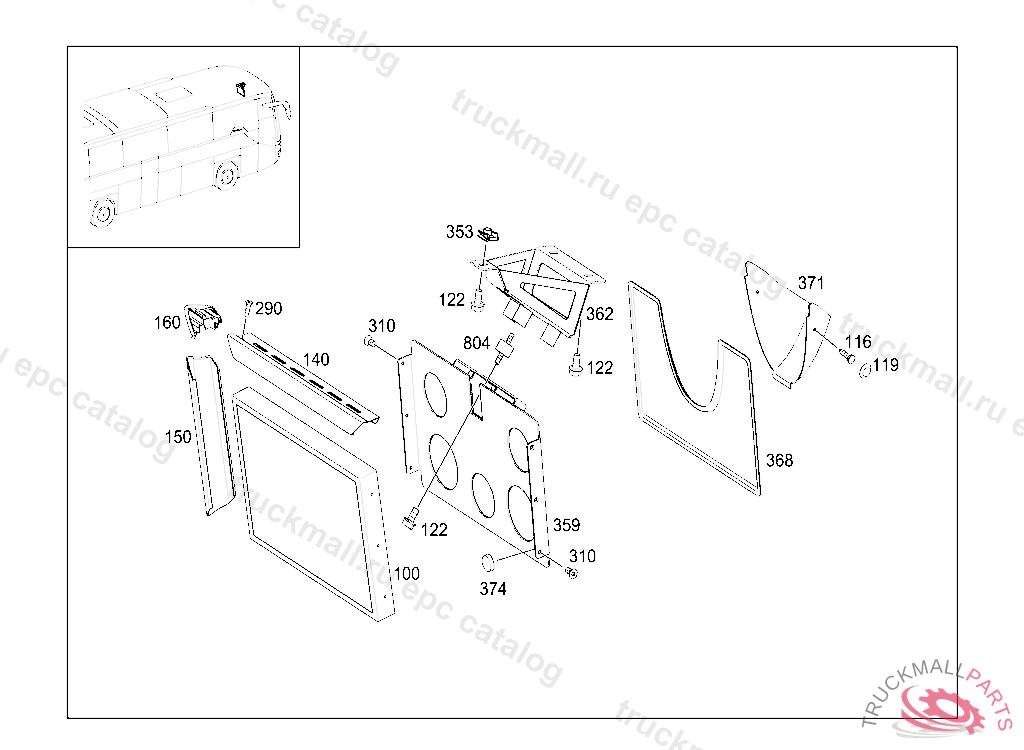

Mercedes A6328142826 - VERKLEIDUNG MONITOR

S 415 GT-HD 632.131

81 APPOINTMENTS - 090 INTERIOR APPOINTMENTS IL. 6

Поз.
Артикул
Описание
100
A0058206289
MONITOR
116
N000000000448
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
116
A0019905036
SHEET METAL SCREW42X16
119
A0009876945
CAP
122
N910105008041
SCREW , Replaced By: N910143008000
140
A4108270024
FRAME
150
A4108270124
FRAME
160
A4108250075
ORNAMENTAL COVER
290
N000000002696
SCREW MOUNTING, SUPPORT PLATE 3X10
310
A0029901020
SCREW
310
N000000007000
SCREW RELAY SOCKET TO APPARATUS PLATE M5X10
353
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
353
A6328142426
COVERING MONITOR
359
A6328103214
BRACKET
362
A6326903514
MOUNT , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.10.2008
362
A6326903914
MOUNT , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.10.2008
368
A4108141225
PANELLING
371
A6328142826
COVERING MONITOR
374
A0019878940
RUBBER BUFFER
804
A0008111036
BEARING BRACKET
