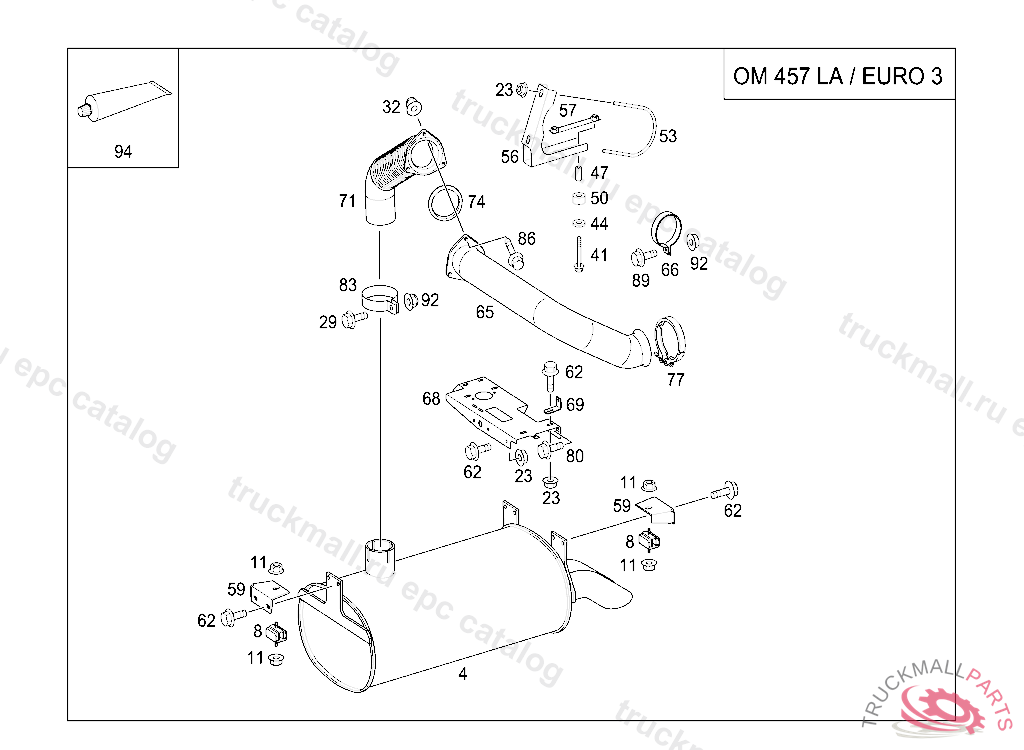

Поз.
Артикул
Описание
4
MUFFLER
8
RUBBER MOUNTING
11
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
11
NUT , Replaced By: N913023010002
23
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
23
NUT HORN TO BRACKET M8
29
SCREW BRACKET TO SIDE MEMBER M10X35
29
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
32
NUT SUPPORT TO SIDE MEMBER
32
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
41
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
44
WASHER BRACKET TO CAB REAR PANEL
47
PILOT BUSHING
50
VIBRATION DAMPER
53
MOUNTING BRACKET ATTACHMENT BRACKET AND EXHAUST PIPE
56
BRACKET EXHAUST PIPE
57
FASTENING PLATE
59
BRACKET
62
SCREW BRACKET TO CAB REAR PANEL M 8X20
65
EXHAUST PIPE
65
EXHAUST PIPE
66
CLAMP PRE-MUFFLER TO MAIN MUFFLER
68
CONSOLE
69
BRACKET EXHAUST PIPE
71
EXHAUST PIPE
74
FLANGE GASKET EXHAUST LINE FLEXIBLE METAL TUBE
77
CLAMP FRONT EXHAUST PIPE TO THROTTLE HOUSING
77
CLAMPD148
80
SCREW EXHAUST PIPE,FRONT,ON FLYWHEEL HOUSING
80
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 16X25
83
CLAMP , Replaced By: N071555124501
83
CLAMP EXHAUST SYSTEM D124,5MM, Replaced By: A6554920140
83
CLAMP
86
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
86
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
89
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
92
NUT , Replaced By: N913023010002
94
ADHESIVE THREAD LOCK 50G
