Mercedes A0008270752 - Переключатель

S 417 GT-HD 3-ACHSER 632.133

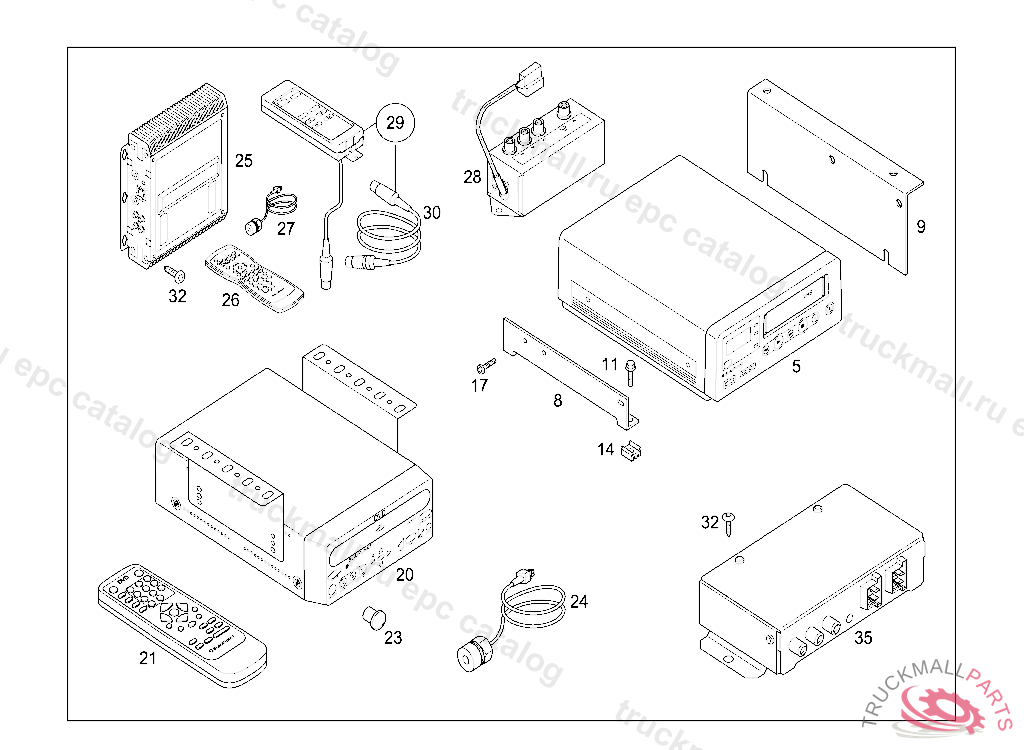

82 ELECTRICAL SYSTEM - 800 VIDEO-TV SYSTEM,LOUDSPEAKERS IL. 5

Поз.
Артикул
Описание
5
A0008270442
VIDEO RECORDER ,237069
8
A6298271014
BRACKET
9
A6328270014
BRACKET
11
N910105005000
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
14
A0019908391
CLIP FASTENERM 5
17
A0039907812
SCREW, SPECIAL SHAPEM 4X12_T20
20
A0048201289
DVD PLAYERDVP 01C
21
A0018209397
REMOTE CONTROLDVP 01C
23
A0118201810
LIGHT SENSORDVP 01C
24
A0008280162
EYE
25
A0068205189
TUNERDVB-T M42
25
A0028204989
TV TUNER VIDEO-SYSTEM
25
A3728200989
TUNER
25
A0048208689
TV TUNER
26
A0028205897
REMOTE CONTROL
26
A0038204697
REMOTE CONTROL
27
A0004400301
TRANSMITTER SENDER
27
A0035405605
CABLE HARNESS INFRARED RECEIVER L5M
28
A0028201989
AMPLIFIER
29
A0018200735
REMOTE CONTROL
30
A0018270304
ELECTRIC CABLE
30
A0005800046
EXTENSION TV TUNER
30
A0008701088
ANTENNA LINE TV TUNER
32
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
32
N000000000940
TAPPING SCREW
32
N000000000446
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
35
A0008270752
SWITCH
35
A0008213992
INSULATING HOSE
999
A0008280001
EL. CABLE TV TUNER TO INFRARED EYE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0215452426
PIN BUSHING HOUSING 4-POLE
999
A0215452526
PIN BUSHING
