Mercedes A6297500344 - ZB LEITTEIL

S 417 GT-HD 3-ACHSER 632.133

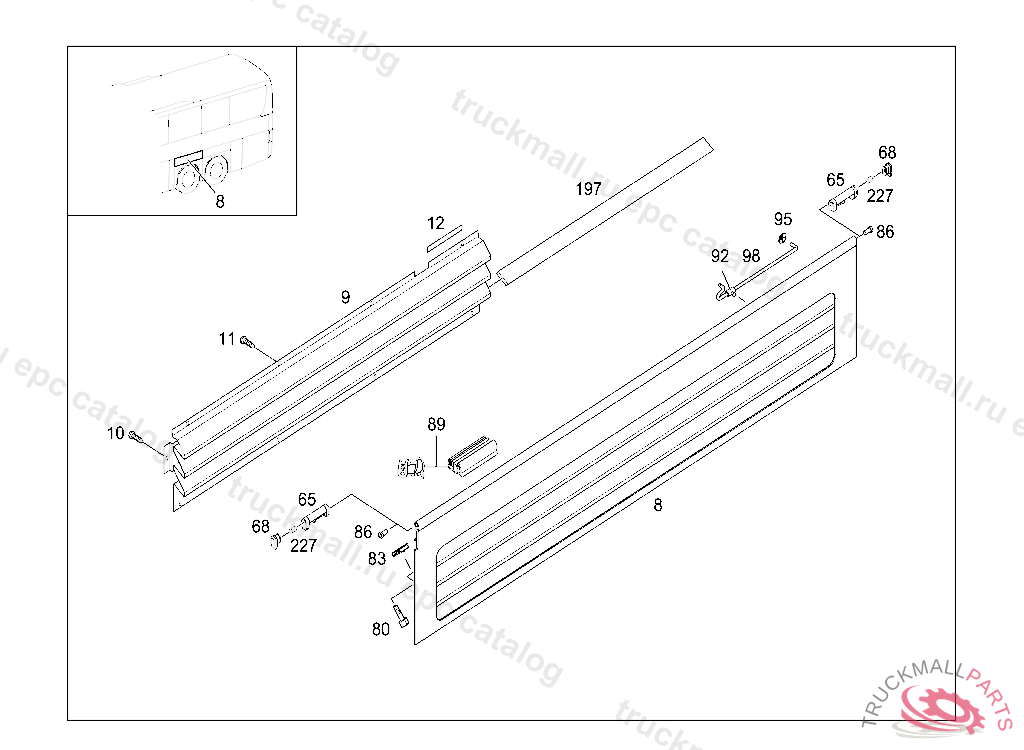

75 OUTSIDE FLAPS - 050 SIDE FLAPS,WHEEL COVERING IL. 5

Поз.
Артикул
Описание
8
A6297501395
FLAP
8
A6297500013
FLAP
9
A6297500344
VENTILATION PART
9
A6297503344
VENTILATION PART
10
N000000001526
HEXALOBULAR BOLTM5X12
11
N000000000527
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
12
A0029890998
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
65
A0009927003
BUSHING
68
A0009983823
PROTECTIVE CAP
80
N910143008000
SCREW SPEED SENSOR TO REAR AXLE
83
A0049941945
NUTM8
86
A0009926205
BUSHING
89
A0007570474
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
89
A0007570274
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
92
A0009956914
BRACKET
95
A0049946245
SPRING NUT , Replaced By: A0009943510
95
A0009943510
LOCK
98
A6297550083
SUPPORT
197
A0006827244
INSULATION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
227
A0003531221
DIFFERENTIAL PINION SHAFT
