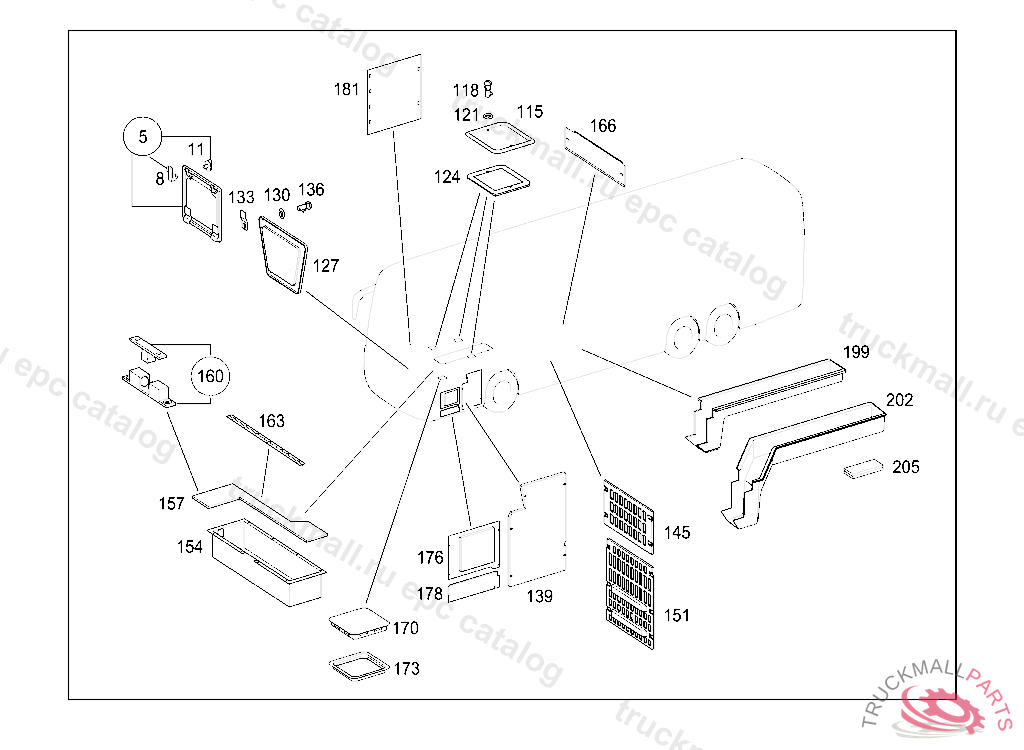

Mercedes A0006830006 - MONTAGERAHMEN

S 417 GT-HD 3-ACHSER 632.133

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
5
A6296801607
CLOSING COVER
8
A0009980695
ROTARY CATCH
11
A0009980595
ROTARY CATCH
115
A0006840018
COVER ABS
118
A0006830212
FASTENER SUPERFIX
121
N000125008445
WASHER PUMP TO CONSOLE
124
A0006800907
COVERING
127
A6296860010
PANELLING PANE WIPER
130
A0009911195
FASTENING CLIP
130
A0039908740
WASHER6 MM
133
A0019886142
FASTENER
136
A0009915807
PIVOT PIN
139
A6326820016
COVERING ELECTRICAL COMPARTMENT
151
A6296860407
COVERING CROSS MEMBER 4
154
A6326800058
SHEET-METAL PAN
157
A0009837880
PLYWOOD2500X1530X15MM, TO BE ADAPTED DURING ASSEMBLY
157
A6326840364
FLOOR FLAP
160
A0009883063
SNAP LOCK
163
A0006840052
HINGE PLATE
166
A6326870107
COVERING , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.05.2009
170
A0006800323
SERVICING COVER
173
A0006830006
FRAME
176
A6326820816
COVER ELECTRICAL COMPARTMENT
178
A6326820916
COVER ELECTRICAL COMPARTMENT
