Mercedes A0009904892 - Крепёж

S 417 GT-HD 3-ACHSER 632.133

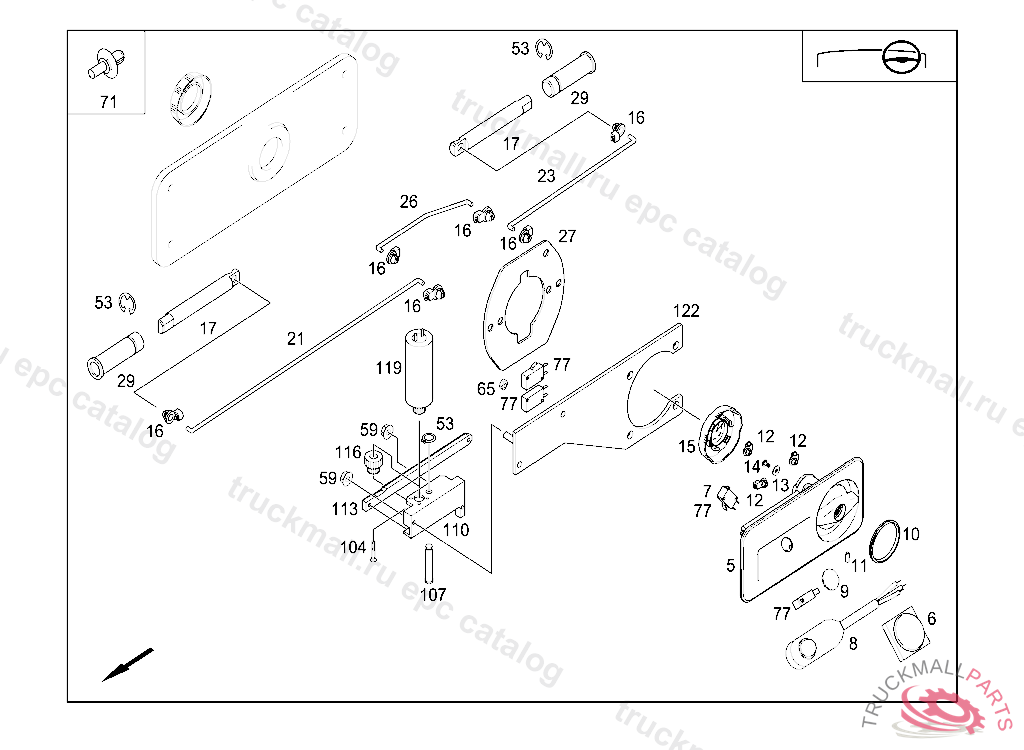

72 DOORS - 180 CLOSING SYSTEM IL. 3

Поз.
Артикул
Описание
5
A6327200166
LOCK , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.01.2012
5
A6297600160
HANDLE
5
A6297600360
HANDLE
6
A0007660068
ORNAMENTAL COVER MICRO-SWITCH
7
A0008212592
MICRO-SWITCH
8
A0008212492
MICRO-SWITCHTYP83123
9
A6327250007
ACTUATIONTO 632 720 01 66
10
A0005510890
SEAL SUCTION LINE TO OIL TANK
11
A0009941765
SAFETY BOLTTO 632 720 01 66
12
A0009916771
RETAINING CLIP
13
N000000003738
WASHER4MM
14
N000000003307
SCREWTO 000 820 07 51
15
A6327230009
DOOR HANDLE4X8, TO 632 720 01 66
16
A0009916771
RETAINING CLIP
16
A0059887678
CLIP HAND BRAKE CABLE,625236
17
A6327230369
LOCK STRIKER
21
A6327330469
PULL ROD RIGHT 378MM
23
A6327230569
PULL ROD LEFT 206MM
23
A6327330169
PULL ROD
26
A6327231469
PULL ROD TOP
26
A6327230669
PULL ROD TOP 93MM
27
A6327660019
PLATE
29
A6327330064
LATCH GUIDE
53
N000471016000
RETAINING RING. LOCK RING BRACKET TO BRACKET
53
N000471005000
LOCK RING
59
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
59
N910112006001
NUT , Replaced By: N913023006001
65
N304032003001
NUT BRACKET MOUNTING
71
A0009904892
RIVET
71
A0009914940
EXPANSION RIVET BRACKET MOUNTING
77
A6327630010
SWITCH
77
A0038212351
SWITCHTO A 000 760 90 03
104
N000000002545
SCREW ROLLER BLIND M3X10
107
A0009915615
BALL PIVOT
110
A0007630531
CONSOLE
113
A6329190127
LINK
116
A6297230117
GEAR DOUBLE GEAR
119
A0005403688
ELECTRIC MOTOR
119
A6297630004
MOTOR
122
A6327600023
CONSOLE
