Поз.
Артикул
Описание

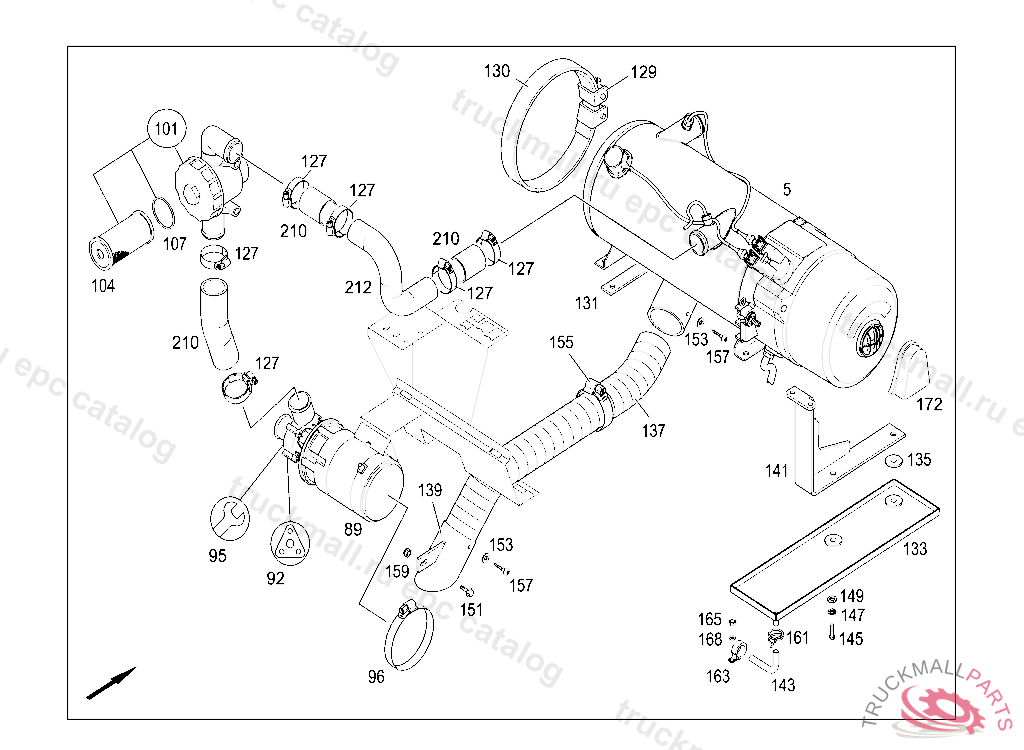

5
BASIC HEATERWEBASTO, THERMO 300
5
HEATERSPHEROS,THERMO S300, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.01.2011
89
PUMP CIRCULATION PUMP 2,U4856
89
PUMP , Replaced By: A0028352964
92
GASKET KIT REPAIR KIT
95
REPAIR KIT PUMP COVER
96
CLAMP INTAKE MUFFLER TO BRACKET 90-110X12
101
WATERFILTER
104
FILTER
107
SEAL
107
SEAL RINGTO A 000 832 20 72, Replaced By: A0018358398
127
CLAMP
129
TURNBUCKLE
130
RETAINING STRAP
130
STRAP , Replaced By: A0008310379
131
PAD
133
DRAINING PAN
135
RUBBER RING , FROM IDENT NO. 089584 ALSO INSTALLED ON 089633,089658
137
HOSE ASSEMBLY
137
HOSE , Replaced By: A0008356397
139
PIPE SOCKET STRAIGHT
141
BRACKET
143
FUEL HOSE. HOSEB5,5-2,5,WEB 629012 13 520122 ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
145
SCREW , Replaced By: N910143008002
147
LOCK LEVER TO TRANSMISSION
149
WASHER PUMP TO CONSOLE
151
TAPPING SCREW MOUNTING PARTS 4.8X16
153
WASHER
155
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
157
TAPPING SCREW MOUNTING PARTS 4.8X16
159
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
161
HOSE CLAMP. HOSE CLAMP
163
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
165
NUT , Replaced By: N913023006001
168
LOCK
172
SPLASH GUARD. CAP
210
RADIATOR HOSENW38
212
PIPE LINE
999
WARNING SIGN , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.01.2011
999
HOSE
999
HOSE
999
HOSE
999
CABLE TIE310X5MM
