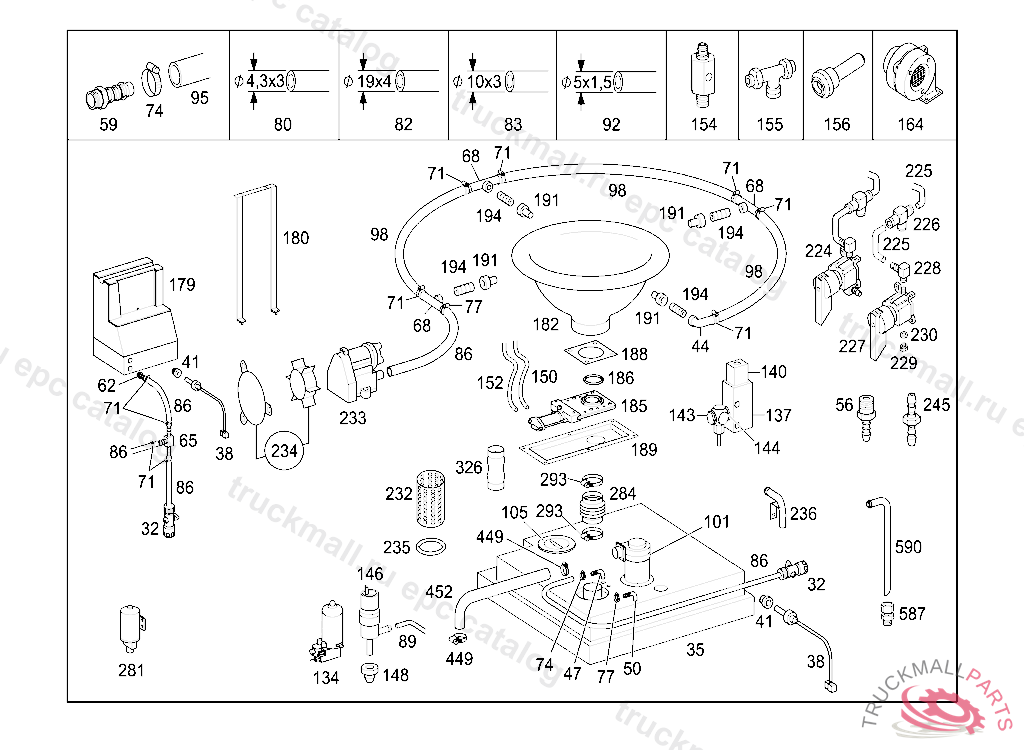

Поз.
Артикул
Описание
32
CONTROL STOP. FASTENER CONTROL STOP
35
RECEPTACLE FECES CONTAINER
35
RECEPTACLE FECES CONTAINER
38
SWITCH WASHER WATER LEVEL SENDER UNIT
41
GROMMET
41
GROMMET , Replaced By: A3019970481
44
FITTING ANGULAR SCREW FITTING 8 R1/4"
47
FITTING. ANGLE ANGULAR SCREW FITTING 19 R3/4"
50
ANGLE. FITTING ANGULAR SCREW FITTING 12/R1/2
56
FITTING SCREW-IN FITTING 6/R1/4
56
FITTING ANGULAR SCREW FITTING
59
FITTING SCREW-IN FITTING 25/R1
62
FITTING SCREW-IN FITTING 12/R1/2
65
T-FITTING CONNECTION FITTING
68
FITTING T SCREW-IN FITTING
71
CLAMP8-16
74
CLAMP20-32
77
CLAMP12-22
80
HOSE BLUE 4,3 X 3 MM
80
HOSE NATURAL-COLORED 4,3 X 3 MM
82
BRAIDED HOSE19 X 4, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
83
HOSE TRANSPARENT PVC WITH FABRIC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
86
HOSE PVC 13X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
89
PLASTIC PIPE RISING PIPE 4X6 MM
89
HOSE EVACUATION 6X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
92
HOSE5X1,5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
95
HOSE TRANSPARENT PVC WITH FABRIC 25 X 4,5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
98
HOSE COMPRESSED AIR HOSE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
BLOWER SOIL VENT
105
COVERING FECES CONTAINER
134
PUMP CHEMICAL FLUSH
134
PUMP FECES CONTAINER
137
VALVE COMPLETE
140
VALVE (SOLENOID VALVE)
143
FITTING
144
SEAL
146
CIRCULATION PUMP , Replaced By: A0008606226
146
CENTRIFUGAL PUMP , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.12.2008
146
PUMP
148
SEAL PUMP TO RESERVOIR
150
HOSE BLUE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
152
HOSE NATURAL, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
154
CONNECTION FITTING
155
DISTRIBUTOR FOR HOSE 6 MM
155
T-FITTING
156
PLUG
164
BLOWER24V
164
IMPELLER BLOWER24V
179
RESERVOIR FRESH WATER TANK
180
BRACKET AT TANK
180
STRAP
182
WC FLUSHING TRAY
182
SINK FLUSHING TRAY
182
WC FLUSHING TRAY
185
SHUTOFF SLIDE
186
SEAL RING
188
ADAPTER
188
ADAPTER
189
COVERING
191
NOZZLE FLUSHING NOZZLE
194
GROMMET
224
DRAIN VALVE , Replaced By: A0008661152
224
DRAIN VALVE
224
VALVE
225
HOSE EVACUATION 6X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
226
DISTRIBUTOR FOR HOSE 6 MM
227
VALVE
228
ANGLE SCREW-IN FITTING EVACUATION
229
SCREW-IN FITTING EVACUATION
230
SEALING RING EVACUATION
232
STRAINER
233
PUMP CHEMICAL FLUSH
233
WATER PUMP WATER FLUSH
233
WATER PUMP WATER FLUSH, Replaced By: A0008603826
234
REPAIR KIT
235
SEAL SEWAGE FILTER
236
PIPE PIECESPUEHLROHR KPL.WC/CC
245
FITTING REDUCTION FITTING
281
VALVE CONTROL STOP
284
HOSE RUBBER BOOT
293
CLAMP HOSE TO PIPE ELBOW 90-110X12MM
326
HOSE
449
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
452
HOSE50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
452
HOSE
587
SEAL CONE
590
TUBE
999
COVERING
999
SEAL
999
COVER
999
SHAPED SECTIONPVCH - PROFIL GEBOGEN
999
SPIRAL SPRING
999
COMPRESSED AIR LINE
999
PLUG SOCKET
999
PLUG SOCKET
999
SOCKET-OUTLET220 V
999
RESERVOIR ASHTRAY
999
VALVE FECES CONTAINER
999
WC TOILET CABIN
999
FASTENER
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
COVERING CORNER COVER
999
SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
