Mercedes A6296821625 - ABDAEMPFUNG

S 417 GT-HD 3-ACHSER 632.133

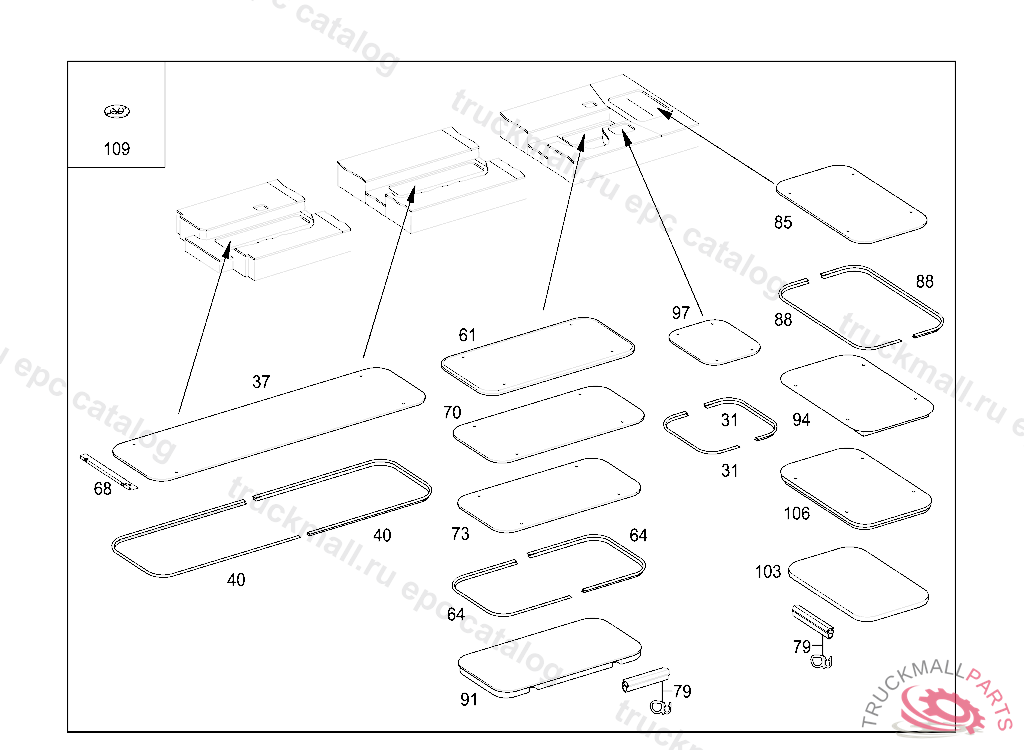

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 6

Поз.
Артикул
Описание
31
A6296840095
EDGING
37
A6326840064
FLOOR FLAP ABOVE FRONT AXLE
37
A6326842564
FLOOR FLAP FRONT
40
A6296840295
EDGING , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
61
A0009837680
PLYWOOD WOOD VENEER 2500X1880X12MM,ACAJOU-RAL7000, ABMESSUNG ANGEBEN
61
A0009837380
PLYWOOD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
64
A6296840195
EDGING , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
68
A6296860136
RETAINING RAIL FOR BOTTOM COVER
70
A0006820104
INSULATION1000X1000MM, ABMESSUNG ANGEBEN
73
A0009837180
PLYWOOD2500X1700X5MM, TO BE ADAPTED DURING ASSEMBLY
79
A0009979349
GASKET , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
85
A6326840264
FLOOR FLAP
88
A6296840395
EDGING
91
A6296840783
INSULATION910X423X30MM
94
A6296101289
COVER
97
A6326840764
FLOOR FLAP
103
A6296821625
INSULATION
106
A6296823025
INSULATION
109
A0059908340
CLAMPING DISC30X23X3,5X0,4MM
