S 416 GT-HD 3-ACHSER
›
632.134
›

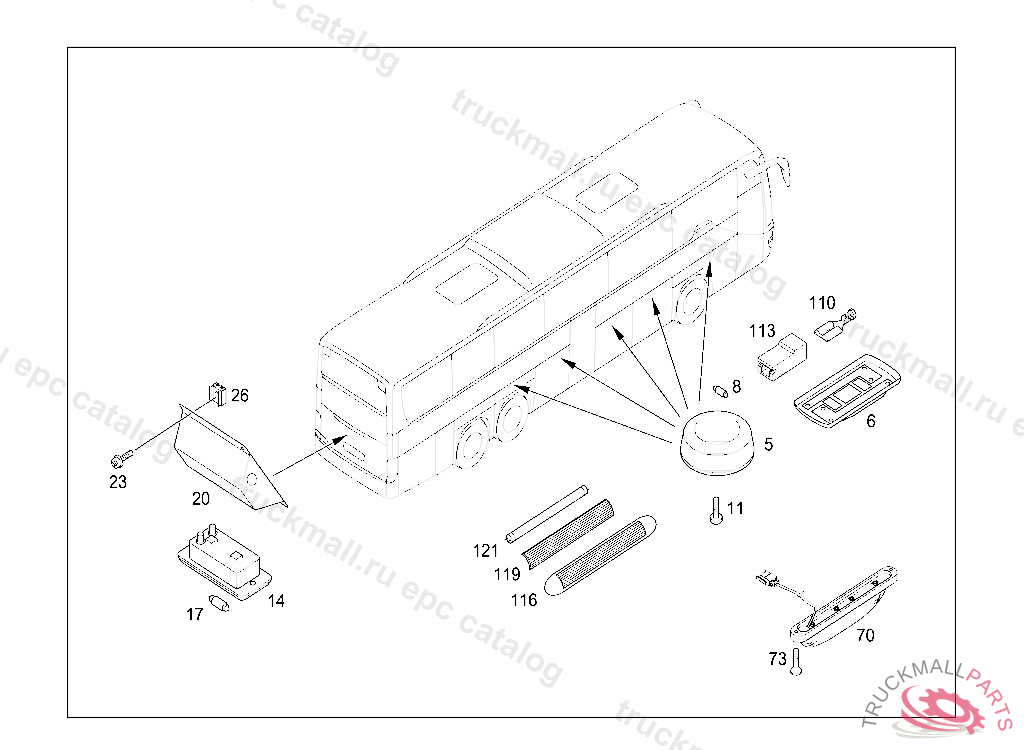

82 ELECTRICAL SYSTEM
›
480 INTERIOR LAMP,PASSENGER COMMUNICATOR SYSTEM IL. 1
Mercedes A0008254101 - Фонарь освещения багажного отсека
S 416 GT-HD 3-ACHSER 632.134
82 ELECTRICAL SYSTEM - 480 INTERIOR LAMP,PASSENGER COMMUNICATOR SYSTEM IL. 1
Поз.
Артикул
Описание
5
A0008254101
DOME LAMP IN FRONT OF CENTRAL DOOR
6
A0008250241
INTERIOR LAMP LUGGAGE COMPARTMENT LAMP
8
N910151024000
BULB24 V 10 W
11
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
14
A0008250002
LAMP IN ENGINE COMPARTMENT
17
N910151024000
BULB24 V 10 W
20
A0008250114
BRACKET
23
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
26
A0019908091
CLIP FASTENER
70
A0008256201
DOME LAMP LUGGAGE COMPARTMENT,LEFT AND RIGHT LED
73
N000000000478
TAPPING SCREW3.5X19
73
A0009907910
COUNTERSUNK WOOD SCREWST3,5X19, Replaced By: N000000000478
110
A0145455526
PIN BUSHING0.5 - 1.5
110
A0005453726
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
113
A0005451745
BOOT PIN BUSHING
116
A0018209101
INTERIOR LAMP LUGGAGE COMPARTMENT
119
A0008256310
LENS
121
Q7585017000
FLUORESCENT TUBE24 V / 8 W
