Mercedes A3028120034 - Пружина

S 416 GT-HD 3-ACHSER 632.134

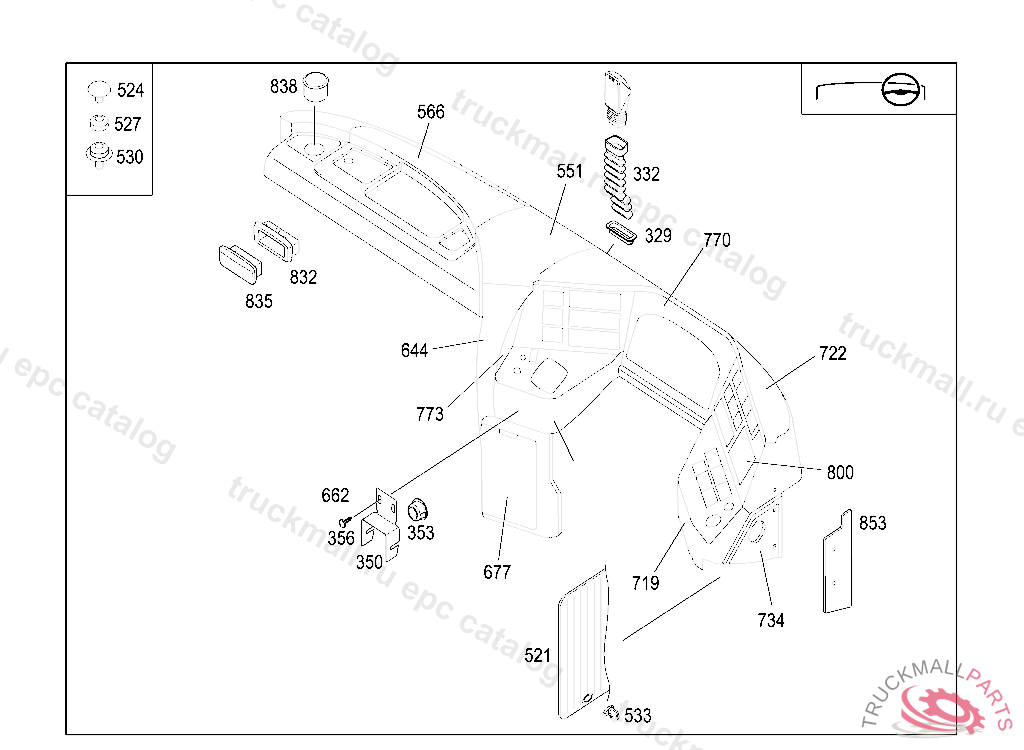

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 5

Поз.
Артикул
Описание
329
A0006880005
BORDER RING
332
A0015458245
BELLOWS LANE DEPARTURE WARNING SYSTEM, TO BE ADAPTED DURING ASSEMBLY
350
A6296890214
BRACKET PANORAMIC CAMERA
353
A6299980001
FEED-THROUGH GROMMET
353
A6326890137
COVER MOLDING
356
N000000000514
TAPPING SCREW MOUNTING PLATE 3.5X9.5
521
A0006880006
PANELLING
524
A0029884781
FASTENER BUTTON
527
A3028120034
SPRING
530
A0029885081
FASTENER BUTTON
533
A0029881042
FASTENER WITH EYELET
551
A6296802106
PANELLING
566
A6296803123
FLAP
644
A6296800731
CONSOLE
662
A6296800831
CONSOLE
677
A6296800931
CONSOLE
719
A6296802206
PANELLING
722
A6296800607
COVERING
734
A6296800339
ORNAMENTAL COVER
770
A6296801555
INSTRUMENT MOUNT , Replaced By: A6296801855
770
A6326802455
INSTRUMENT MOUNT
770
A6296801855
INSTRUMENT MOUNT
770
A6296801155
INSTRUMENT SUPPORT
770
A6326804455
INSTRUMENT MOUNT
770
A6326802855
INSTRUMENT MOUNT
773
A6296800955
INSTRUMENT MOUNT
773
A6326803255
INSTRUMENT MOUNT
800
A6296890047
SHELL
832
A6298130258
HOUSING
835
A6298130158
COVER
838
A6298430014
GLASS BRACKET
853
A6296894008
COVERING
999
A0059909340
WASHER
