Mercedes A6326920500 - VERKLEIDUNG

S 416 GT-HD 3-ACHSER 632.134

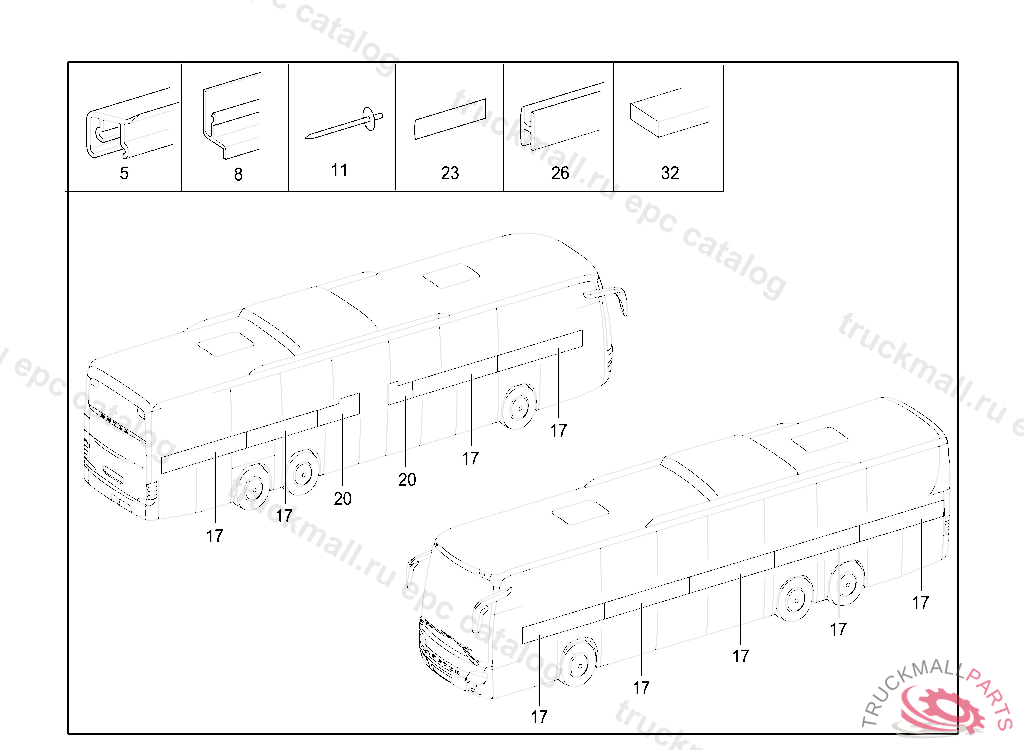

69 COVERING AND LINING - 060 SIDE WALL INTERIOR PANELLING IL. 1

Поз.
Артикул
Описание
5
A6326920022
COVERING WINDOW SILL,INSIDE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
A0079856451
METAL SECTION ALUMINUM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
11
N910001004105
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
17
A6326920400
PANELLING TO BE SHORTENED ACCORDINGLY, TO BE ADAPTED DURING ASSEMBLY
20
A6326920500
PANELLING ENTRANCE 3X2650X2050MM, TO BE ADAPTED DURING ASSEMBLY
23
A0009872266
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
23
A0009834898
FOAM PLASTICS35X5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
26
A6296920361
LEDGE396X50MM
