Mercedes N000000002595 - Просечной штифт
S 416 GT-HD 3-ACHSER 632.134
83 HEATING AND VENTILATION - 210 AIR DUCT TO ROOF IL. 1

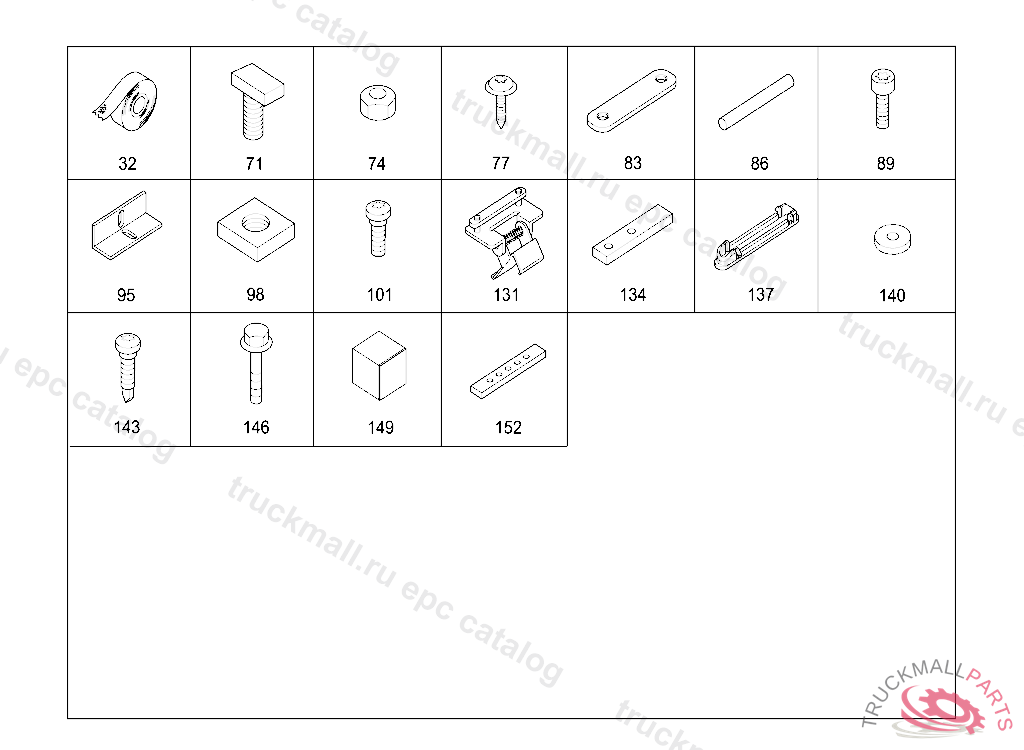

Поз.
Артикул
Описание
32
A0019891585
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
71
A0009900108
T-SCREW
74
N913023008003
NUT HORN TO BRACKET M8
77
N000000000521
TAPPING SCREW CONTROL UNIT TO FIRE WALL
83
A0008360111
PLATE. THREADED PLATE
86
N000000003595
CYLINDER PINM6X28
86
N000000002595
GROOVED PIN
89
A0039908212
SCREWM 5 X 10
95
A4108360314
BRACKET
98
A0009905155
NUTM8
101
A0009903029
SCREWM8X16
101
N000000006045
BOLTM5X20
101
A0009901129
SCREWM 8X22, T40
131
A6328300027
FASTENER
134
A0008360114
BRACKET
134
A0008360914
BRACKET
137
A0008362202
COVERING VENTILATION AT TOP
140
N000000003250
WASHER BRACKET TO CAB REAR PANEL
140
A0069900740
WASHER
143
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
146
N910105008041
SCREW , Replaced By: N910143008000
149
A6328360050
TOP LAYER
152
A0008360814
BRACKET
999
A0008314098
SEAL60X80X410MM
