Mercedes A0009104674 - ТЯГА

S 419 GT-HD 632.138

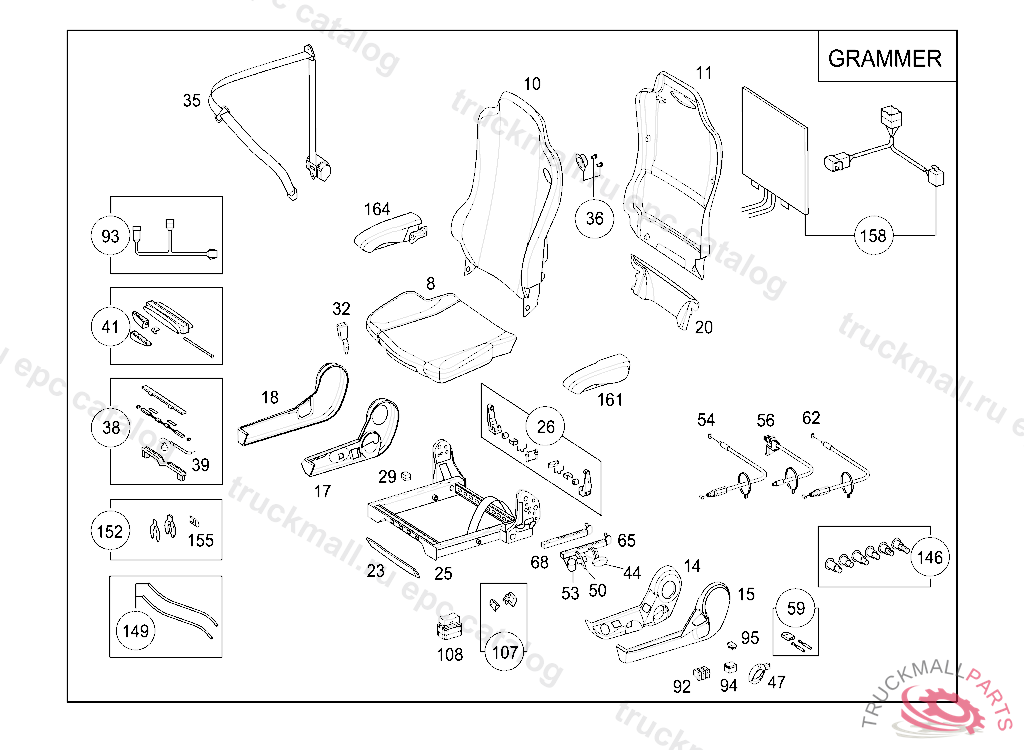

91 FRONT SEATS - 035 GRAMMER DRIVER'S SEAT IL. 2

Поз.
Артикул
Описание
8
A0029105930
FRONT SEAT CUSHION
10
A0009108807
BACKREST
11
A0009131128
COVERING BACKREST
14
A0009126535
COVERING (SIDE COVER) OPERATING FACE,LEFT
18
A0009126835
COVERING RIGHT,COMPLETE
20
A0009131228
COVERING PANELLING TO BACKREST
23
A0009131328
COVERING SEAT FRAMEWORK,FRONT
25
A0009104922
CUSHION FRAME
26
A0009101361
DETENT
29
A0009110222
GUIDE SEAT CUSHION
32
A0028603969
FASTENER SEAT BELT BUCKLE WITH WARNING CONTACT
35
A0048601885
SAFETY BELT
36
A0008680922
BELT GUIDE
38
A0009102377
SEAT ADJUSTER RAKE ADJUSTMENT
39
A0009102074
PULL RAKE ADJUSTMENT
41
A0019194960
HANDLE
44
A0019191360
HANDLE
47
A0009105071
HANDLE
50
A0009104871
HANDLE
53
A0009104871
HANDLE
53
A0009110521
HANDLE ROTATING DEVICE
54
A0009104774
PULL
56
A0009104474
PULL
59
A0009103274
PULL BACKREST ADJUSTMENT
62
A0009104674
PULL
65
A0009105771
HANDLE MOLDING
65
A0009101382
MOULDING TYPE HANDLE
68
A0009190962
DETENT
92
A0009198360
VALVE. HANDLE
93
A0005467215
ELECTRIC CABLE
94
A0009181336
COVERING
95
A0098207510
SWITCH SEAT HEATING
107
A0009107938
VALVE ROTATING DEVICE
108
A0085459024
SWITCH,AUTOMATIC
149
A0005501459
HOSE ASSEMBLY
158
A6288200498
SEAT HEATING
158
A6278200298
SEAT HEATING. HEATING PAD SCOPE OF SUPPLY FOR COMPLETE REPLACEMENT
161
A0009706401
ARMREST LEFT
164
A0009706601
ARMREST RIGHT
