Главная
›
Mercedes
›
BUS
›
S 419 GT-HD
›
632.138
›

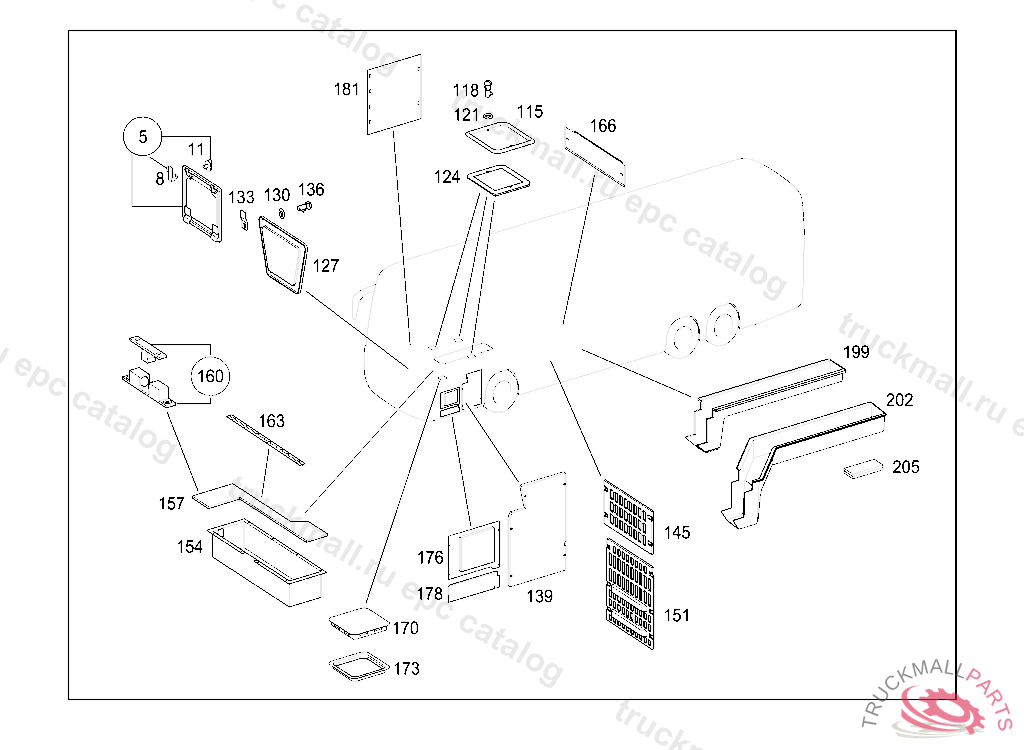

68 PANELLING AND LINING
›
270 FLOORING,FLOOR FLAPS IL. 5
Mercedes A0006830006 - MONTAGERAHMEN
S 419 GT-HD 632.138
68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5
Поз.
Артикул
Описание
5
A6296801607
CLOSING COVER
8
A0009980695
ROTARY CATCH
11
A0009980595
ROTARY CATCH
127
A6296860010
PANELLING PANE WIPER
130
A0039908740
WASHER6 MM
133
A0019886142
FASTENER
136
A0009915807
PIVOT PIN
139
A6326820016
COVERING ELECTRICAL COMPARTMENT
151
A6296860407
COVERING CROSS MEMBER 4
154
A6326800058
SHEET-METAL PAN
157
A0009837880
PLYWOOD2500X1530X15MM, TO BE ADAPTED DURING ASSEMBLY
160
A0009883063
SNAP LOCK
163
A0006840152
HINGE STRAP32X0.7-3550MM, TO BE ADAPTED DURING ASSEMBLY
170
A0006800323
SERVICING COVER
173
A0006830006
FRAME
202
A6326841377
COVER WATER PIPES
205
A0029891698
SEALING STRIP
