Mercedes A0019906117 - VERSCHL.SCHR

S 416 GT-HD 2-ACHSER 632.139

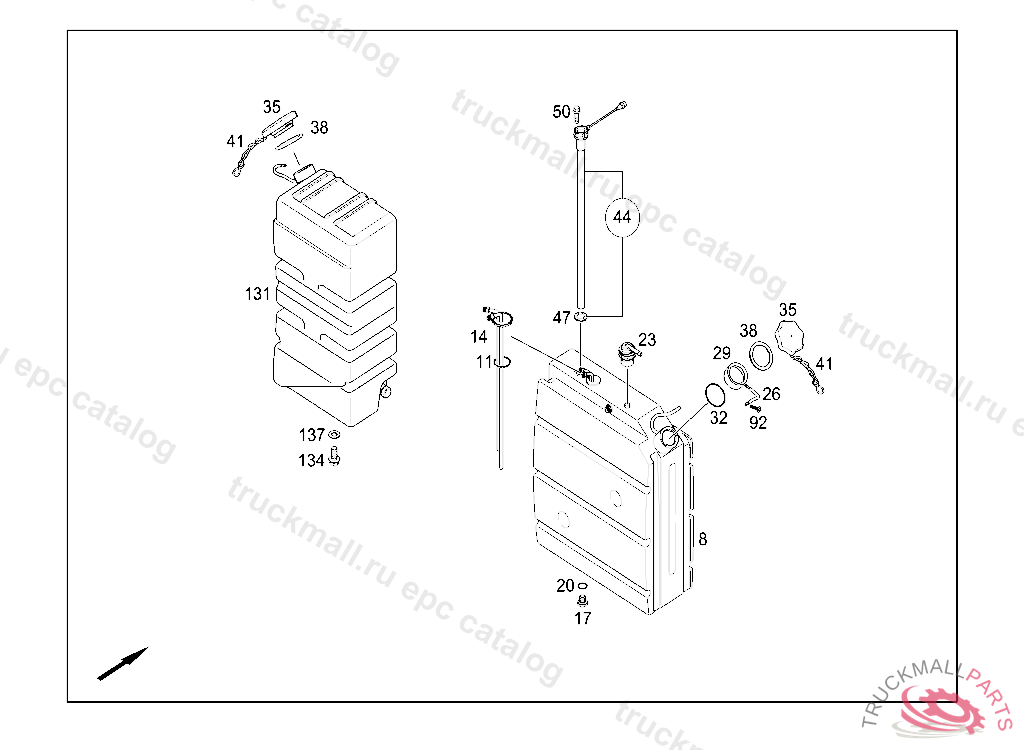

47 FUEL SYSTEM - 180 FUEL TANK IL. 4

Поз.
Артикул
Описание
8
A6324701702
FUEL TANK RIGHT ELKAMET
8
A6324700502
FUEL TANK RIGHT, Replaced By: A6324701702
11
A0009975149
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
14
A6294700094
SUPPLY UNIT
17
A0009909117
SCREWTO A 632 470 17 02 M14X1.5
17
N000000005518
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
20
A0004712680
GASKET
20
A0209972545
O-RING
20
A6324710179
SEAL RINGFLOTEKS
23
A0014760632
VALVE
26
A1155400741
GROUND STRAP , Replaced By: A1155400341
29
A6329970064
FITTINGFLOTEKS
29
A0009971564
FITTING
32
A0129978945
SEAL RING95X4MM
32
A6329970145
SEAL RINGFLOTEKS 94X2
35
A0004702205
FILLER CAP
35
A0004700805
FILLER CAP
38
A0004710579
SEAL RING TO FILLER CAP
38
A0004713280
GASKET
41
A0009930675
CHAIN
41
A0009930179
RETENTION CHAIN TO FILLER CAP
44
A6325400117
SENDER UNIT FUEL TANK L985MM
47
A0004710779
SEAL RING
50
N910105005005
HEXAGON HEAD BOLT SWITCH TO CAB FLOOR M 5X35
92
A0009902029
SCREW W SOCKET DRIVEM6X25 T30
131
A6324702201
FUEL TANK LEFT
134
A0019906117
SCREW PLUGM18X1.5 NOWOTECH
137
N007603018101
SEAL RING VALVE TO VALVE,K 025179
