Главная
›
Mercedes
›
BUS
›
S 416 GT-HD 2-ACHSER
›
632.139
›

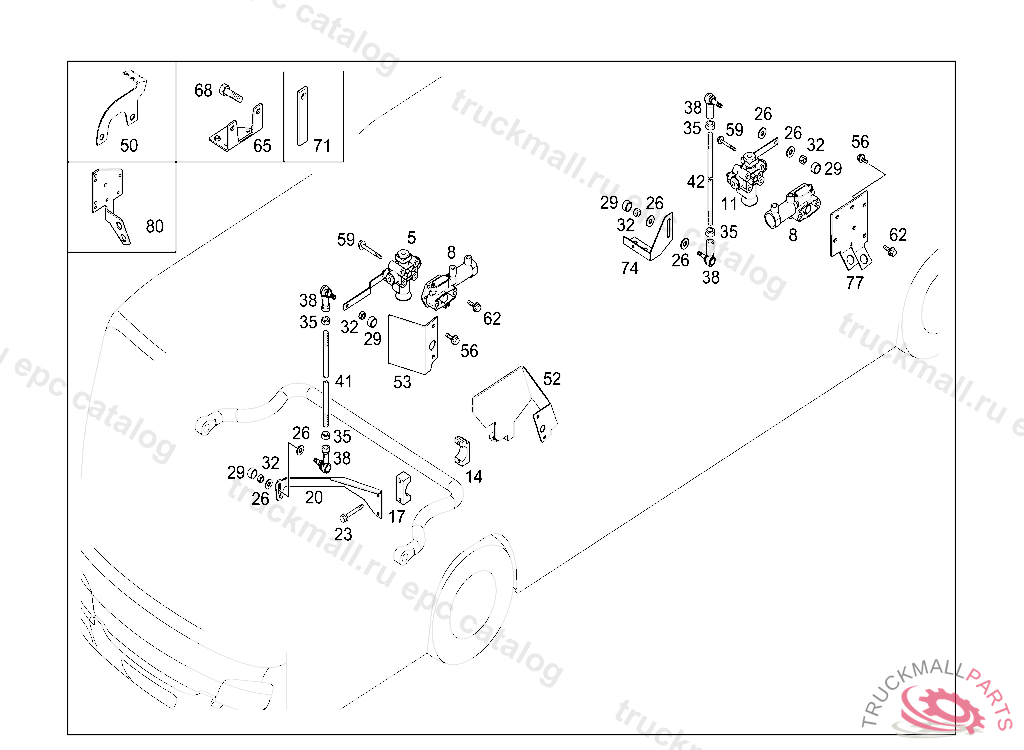

32 SPRINGS AND SUSPENSION
›
060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 2
Mercedes A6293270127 - HEBEL
S 416 GT-HD 2-ACHSER 632.139
32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 2
Поз.
Артикул
Описание
5
A0003279225
VALVE FRONT AXLE
8
A0003277625
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
11
A0003282525
VALVE DRIVING AXLE RIGHT
11
A0003282425
VALVE DRIVING AXLE LEFT
14
A6293270121
COVER
17
A6293270021
COVER
20
A6293230015
LEVER
23
N910143008017
SCREW 3/2-WAY VALVE TO BRACKET
26
N000125008445
WASHER PUMP TO CONSOLE
29
N913018013202
PROTECTION CAP MOUNTING TO BODY
32
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
N913023008002
NUT ENGINE MOUNTING M8
35
N304032008006
NUT
38
A0019962545
ANGLE JOINTA13
38
A0003280063
JOINTA13, Replaced By: A0019962545
41
A6293280634
RODM8/160LG
42
A6293280534
RODM8/140LG
50
A0003270740
BRACKET
52
A0003270286
PROTECTIVE PLATE
53
A0003270086
PROTECTIVE PLATE
56
N910143008000
SCREW SPEED SENSOR TO REAR AXLE
56
N910105008041
SCREW , Replaced By: N910143008000
59
N910105008006
SCREW VALVE TO BRACKET M 8X60
62
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
68
N910143008020
SCREW SPEED SENSOR TO REAR AXLE
71
A6293270127
LEVER APPROXIMATION SWITCH
74
A6293280740
BRACKET RIGHT
74
A6293280640
BRACKET LEFT
80
A6323280640
BRACKET LEFT
80
A6323280740
BRACKET RIGHT
