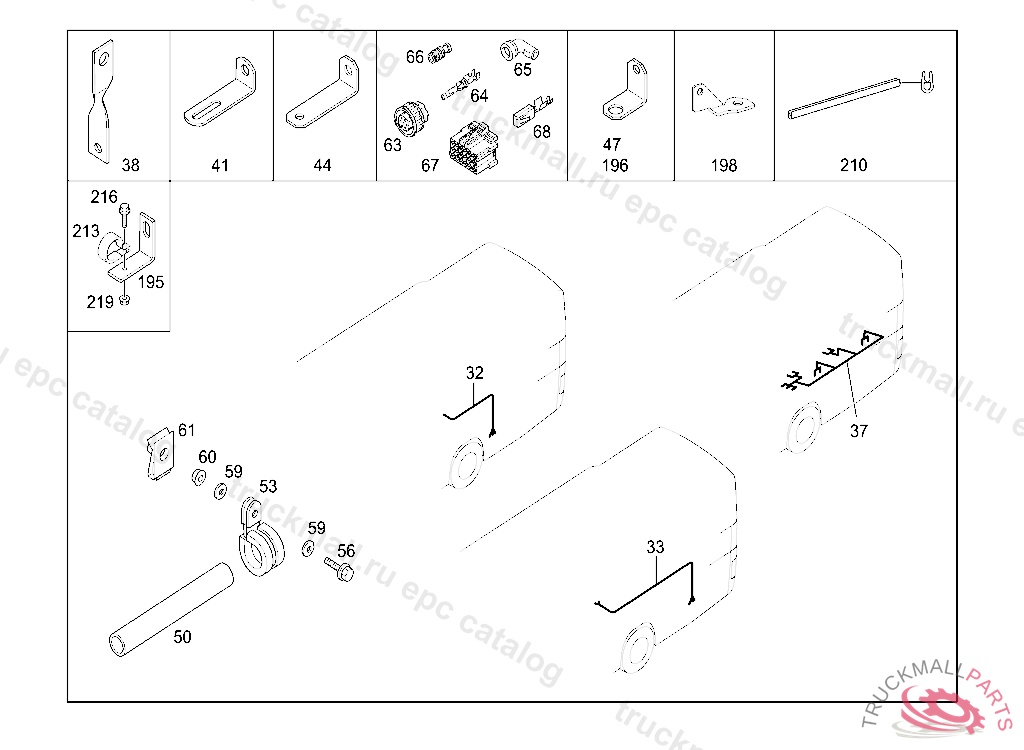

Поз.
Артикул
Описание
32
ELECTRICAL WIRING HARNESS ASTRONIC - STARTING ON A HILL, STATE IDENT NO. WHEN ORDERING
32
CABLE HARNESS RETARDER VR 115 E, STATE IDENT NO. WHEN ORDERING
32
ELECTRICAL WIRING HARNESS INTARDER ASTRONIC, AS OF PRODUCTION BREAKPOINT DATE 05.10.2007 STATE IDENT NO. WHEN ORDERING
32
CABLE HARNESS INTARDER ZF, STATE IDENT NO. WHEN ORDERING
32
CABLE HARNESS INTARDER ASTRONIC, UNTIL PRODUCTION BREAKPOINT DATE 04.10.2007 STATE IDENT NO. WHEN ORDERING
33
ELECTRICAL WIRING HARNESS MANUAL TRANSMISSION, STATE IDENT NO. WHEN ORDERING
33
ELECTRICAL WIRING HARNESS MANUAL TRANSMISSION CABLE HARNESS GO TRV, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.12.2011
33
CABLE HARNESS MANUAL TRANSMISSION EPS III, STATE IDENT NO. WHEN ORDERING
33
ELECTRICAL WIRING HARNESS MANUAL TRANSMISSION, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.11.2011
33
CABLE HARNESS MANUAL TRANSMISSION, Replaced By: A6325403613
33
ELECTRICAL WIRING HARNESS MANUAL TRANSMISSION, STATE IDENT NO. WHEN ORDERING
37
ELECTRICAL WIRING HARNESS ADDITIONAL CABLE,AUTOMATIC TRANSMISSION AS TRONIC
37
ELECTRICAL WIRING HARNESS ADDITIONAL CABLE,AUTOMATIC TRANSMISSION G0240
38
BRACKET BRACKET TO HEAT EXCHANGER
41
BRACKET BRACKET TO TRANSMISSION
41
BRACKET BRACKET TO TRANSMISSION
41
BRACKET
41
BRACKET
44
BRACKET BRACKET TO TRANSMISSION
44
BRACKET
50
BRACKET
50
BRACKET CABLE HARNESS RETARDER
50
BRACKET CABLE HARNESS RETARDER, Replaced By: A0015463643
53
CLAMP PIPE ON FAN SHROUD
53
CLAMP10/15
53
CLAMP LINE MOUNTING
53
CLAMP LINE MOUNTING 15-18 MM,V 207570
53
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
53
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
53
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
53
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
53
CLAMP HOSE TO FLANGE AND TO VALVE
56
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLYM6X20
56
SCREW , Replaced By: N910143008002
56
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
56
HEXAGON HEAD BOLT , Replaced By: N910105006024
56
HEXAGON HEAD BOLT
56
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
56
COMBINATION BOLT , Replaced By: N304017006016
56
SCREW , Replaced By: N910143008000
56
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
56
SCREW , Replaced By: N914146006102
59
SPRING WASHER CABLE TO ALTERNATOR
59
SPRING WASHER BRAKE SHOE WITH LINING
59
WASHER LINE MOUNTING
59
SPRING WASHER CABLE TO ALTERNATOR
60
NUT-AND-WASHER ASSEMBLY EVAPORATOR HOUSING TO CROSSMEMBER M6
60
NUT SPRING-LOADED PUSH ROD
60
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
60
NUT
60
NUT , Replaced By: N304032005005
60
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
60
NUT
60
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
61
LOCK. NUT , Replaced By: A0039941745
63
SOCKET HOUSING 3-POLE
63
SOCKET HOUSING BIPOLAR
63
SOCKET HOUSING , Replaced By: A0025402781
63
PLUG SOCKET BRANCH-OFF TO FUEL GAUGE SENDER UNIT
64
ROUND PIN BUSHING
65
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
66
WIRE SEAL GREY 0.5-1.0 MM2
67
RECEPTACLE HOUSING. PIN BUSHING HOUSING21 PIN
68
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING
195
BRACKET
196
ATTACHMENT ANGLE BRACKET
198
BRACKET
198
BRACKET
210
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
213
CLAMP LINE MOUNTING
213
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
213
CLAMP22/15, Replaced By: A0019951442
216
SCREW , Replaced By: N910143008002
216
HEXAGON HEAD BOLT
216
SCREW BRACKET AND CLAMP M6X20
219
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
219
NUT , Replaced By: N913023006001
