S 416 GT-HD 2-ACHSER
632.139
86 EMERGENCY EQUIPMENT
165 TOILET IL. 2

Mercedes A0008661259 - STUTZEN /GER.EINSCHR

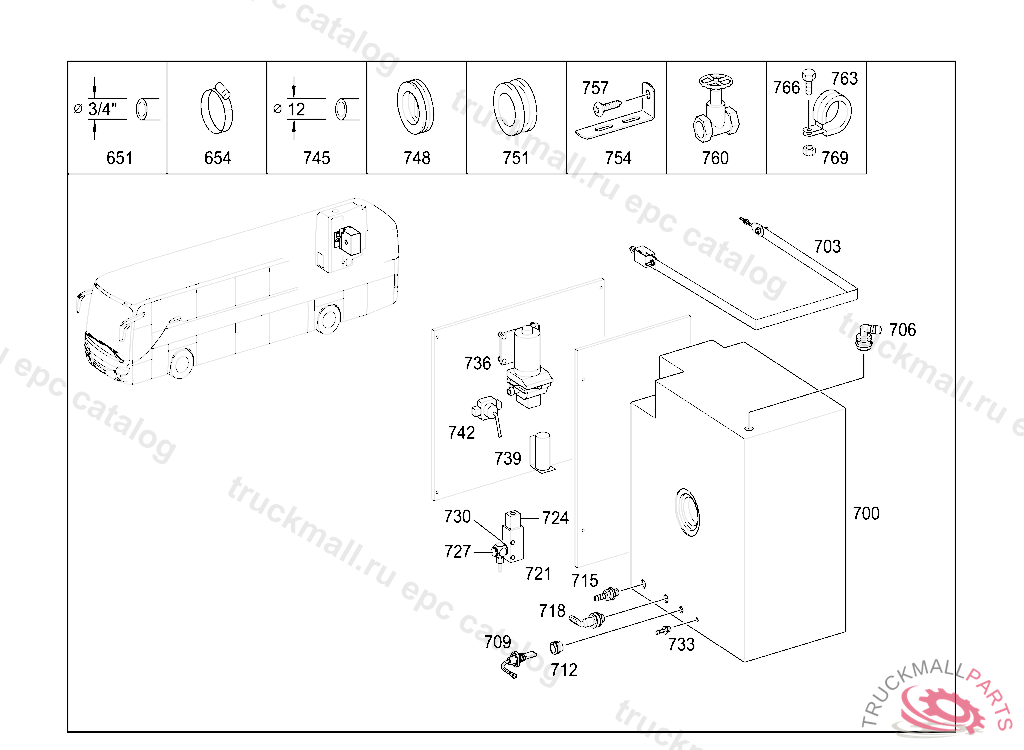

S 416 GT-HD 2-ACHSER 632.139

86 EMERGENCY EQUIPMENT - 165 TOILET IL. 2

Поз.
Артикул
Описание
651
A0249976582
HOSE19 X 4
654
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
654
N000000000666
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
700
A0008400117
WATER RESERVOIR
703
A0008600252
STRAP
706
A0009972064
FITTING3/4"X18/19MM
709
A0018205710
SWITCH WASHER WATER LEVEL SENDER UNIT
712
A3019970481
GROMMET
715
A0009971864
FITTING1/2"X10/12MM
718
A0009971964
FITTING1/2"X10/12MM
721
A6138600062
VALVE COMPLETE
724
A0008602462
VALVE (SOLENOID VALVE)
727
A0049902768
FITTING
730
A0008661498
SEAL
733
A0008661259
FITTING SCREW-IN FITTING 6/R1/4
736
A0028351664
PUMP DRINKING WATER 24V
739
A0028354264
PUMP
742
A0008602362
VALVE
745
A0069970152
WATER HOSE DRINKING WATER PVC MIT GEWEBEI12 M, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
748
A0009876441
GROMMET
751
A0009980104
GROMMET1/2"
754
A0005280340
BRACKET HOSE ATTACHMENT
757
N000000002436
HEXALOBULAR BOLTM6X16
760
A0008300557
SLIDE1/2" KUGELHAHN
760
A0009970008
SHUT-OFF VALVE1/2"
763
N916016028204
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
766
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
769
N910112006003
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
999
A6328607761
LAVATORY TOILET CABIN
999
A6328607861
LAVATORY TOILET CABIN
999
A6328607961
LAVATORY TOILET CABIN
999
A6328608161
LAVATORY TOILET CABIN
999
A6328608261
LAVATORY TOILET CABIN
999
A6328608361
LAVATORY TOILET CABIN
999
A6328608461
LAVATORY TOILET CABIN
999
A6328608561
LAVATORY TOILET CABIN
999
A6328608661
LAVATORY TOILET CABIN
999
A6328608761
LAVATORY TOILET CABIN
999
A6328608861
LAVATORY TOILET CABIN
999
N000000000480
SHEET METAL SCREW. SCREW
999
N000000000485
TAPPING SCREW MOUNTING, COVER
999
N000000003337
WASHER
999
Q179751129119
COVERING CORNER COVER
999
Q4343171000
SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0008661030
COVERING
999
A0008661398
SEAL
999
A0008662130
COVER
999
A0009857945
SHAPED SECTIONPVCH - PROFIL GEBOGEN
999
A0009931235
SPIRAL SPRING
999
A0009978875
THREADED UNION
999
A4104203630
COMPRESSED AIR LINE
999
A6298200251
PLUG SOCKET
999
A6298200351
SOCKET-OUTLET220 V
999
A6298600060
RESERVOIR ASHTRAY
999
A6298600062
VALVE FECES CONTAINER
999
A6298601161
WC TOILET CABIN
999
A6298660069
FASTENER
