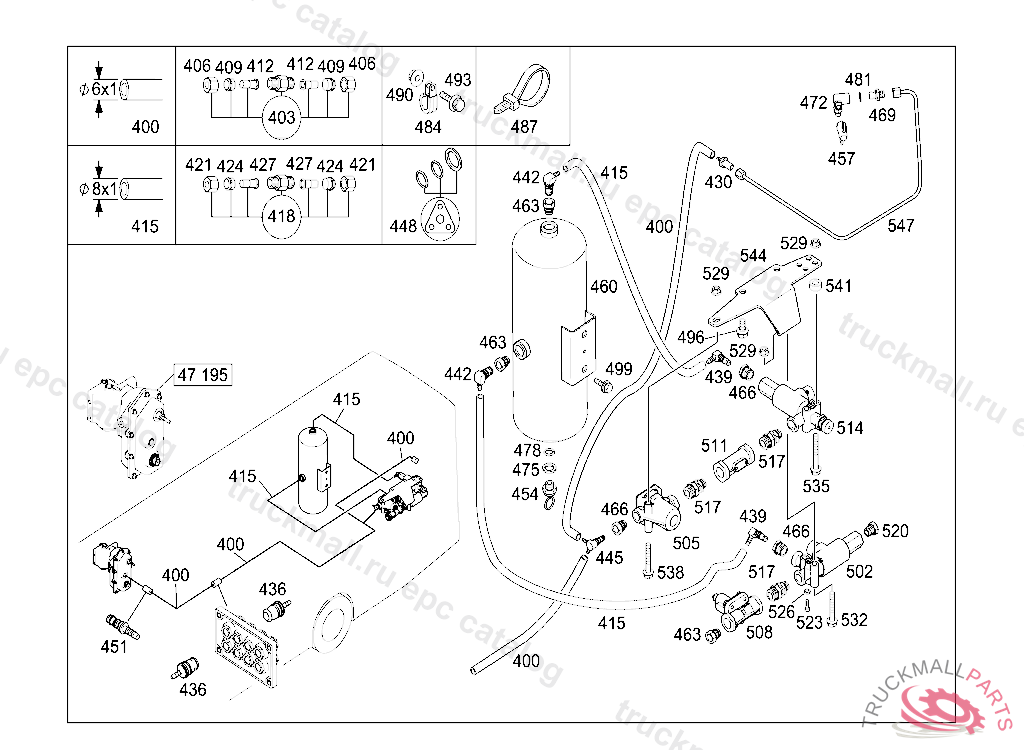

Поз.
Артикул
Описание
400
PLASTIC PIPE RISING PIPE 4X6 MM
403
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
406
UNION NUT
409
SEAL CONE
412
SLEEVE LEAK LINE
415
PLASTIC PIPE AERATION, ORDER BY THE METER
418
FITTING (PARTS KIT),LINE RUPTURE
421
UNION NUT LINE CONNECTION
424
GLAND LINE CONNECTION
427
SLEEVE LINE CONNECTION
430
FITTING , Replaced By: N915059004001
436
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, 4MM, VOSS 232
439
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232
439
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232, Replaced By: A0059972689
442
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 6 MM, VOSS 232
445
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM / 4 MM, VOSS 232
448
REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, VOSS 232
451
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M10, 4MM, SDF
451
CONNECTION PIECE , Replaced By: A0049971489
454
VALVE DRAIN VALVE
457
TEST CONNECTION
460
RESERVOIR
463
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
463
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
466
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
469
FITTING
472
L-FITTINGM12X1.5/M10X1.5
475
THRUST RING CHECK VALVE TO AIR RESERVOIR
478
O-RING CHECK VALVE TO AIR RESERVOIR
481
SEAL RING 3/2-WAY VALVE
484
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
484
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
484
CLAMP6/15, Replaced By: N000000007509
484
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
484
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
484
CLAMP10/15
487
CABLE STRAP7.8X465
490
NUT BRACKET TO FIRE WALL
490
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
493
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
493
SCREW BRACKET AND CLAMP M6X20
496
SCREWM 10X20
499
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
502
3-2-WAY PNEUMATIC VALVE
502
SOLENOID VALVE 3/2-WAY VALVE ADBLUE
505
VALVE PRESSURE LIMIT VALVE
508
VALVE OVERFLOW VALVE ADBLUE, 7.03,V 207570V 208680
511
NON-RETURN VALVE CHECK VALVE
514
VALVE (3/2-WAY SOLENOID VALVE)
517
STRAIGHT BULKHEAD FITTING WITH O-RING M22X1.5/M16X1.5
520
SCREW PLUG SOLENOID VALVE M16
523
SCREWM6X12 TX30
526
SEAL RINGBOSCH
529
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
532
SCREW 3/2-WAY VALVE TO BRACKET
532
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
535
SCREWM6X65
535
HEXALOBULAR BOLT TRAVEL SENSOR TO BRACKET,K 186868
538
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
538
SCREW , Replaced By: N910143008009
541
SPACER WASHER AT CONSOLE
544
BRACKET
547
LINE
