Mercedes A0029908022 - Болт

S 416 GT-HD 2-ACHSER 632.139

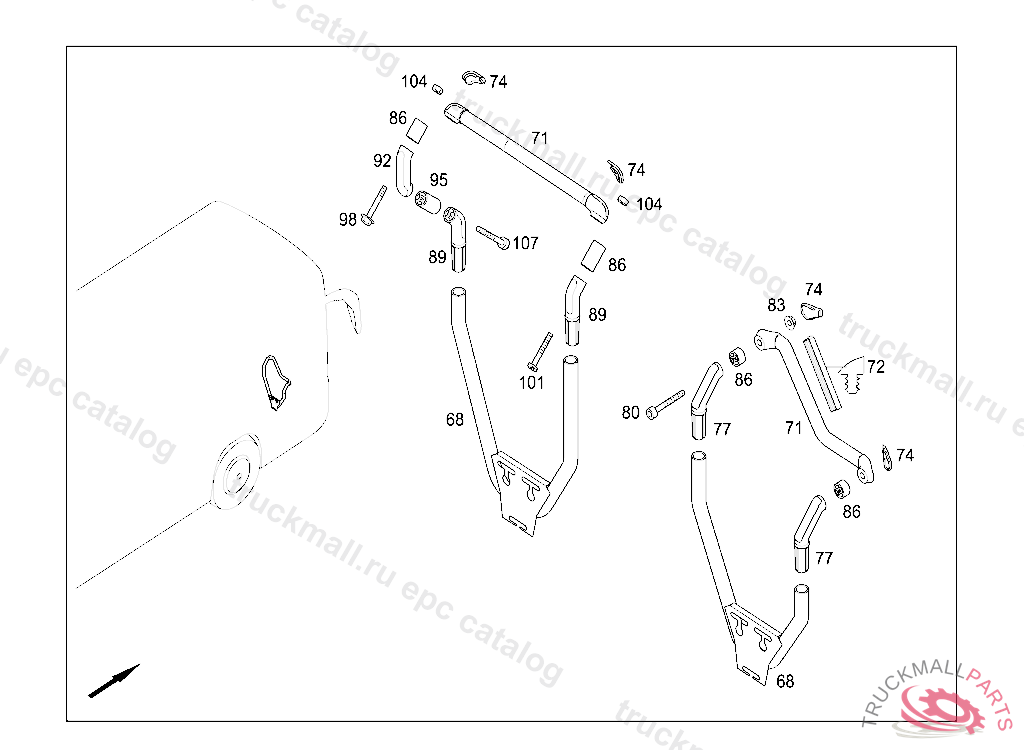

81 APPOINTMENTS - 250 GRAB HANDLE IL. 4

Поз.
Артикул
Описание
68
A6298101132
CLAMP , TO BE ADAPTED DURING ASSEMBLY
71
A6329100071
HANDLE
72
A6329110097
INSERTTO A 632 810 03 54, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
74
A6329190120
COVERING
77
A6277104832
CONNECTIONGR90
80
N000912008112
CAP BOLTM8X45
83
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
86
A6277117234
CONNECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
89
A6277103732
CONNECTIONGR45
92
A6277100432
CONNECTIONGR90
95
A0009972876
CONNECTION
98
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
101
N000000001432
HEXALOBULAR BOLT ABSORBER AT BOTTOM TO INTEGRAL CARRIER AT LEFT AND RIGHT
104
N304032008006
NUT
107
A0029908022
BOLT. SCREWM8X30MM
