Mercedes A4106370272 - WINKEL F SEITENSCHEI

S 416 GT-HD 2-ACHSER 632.139

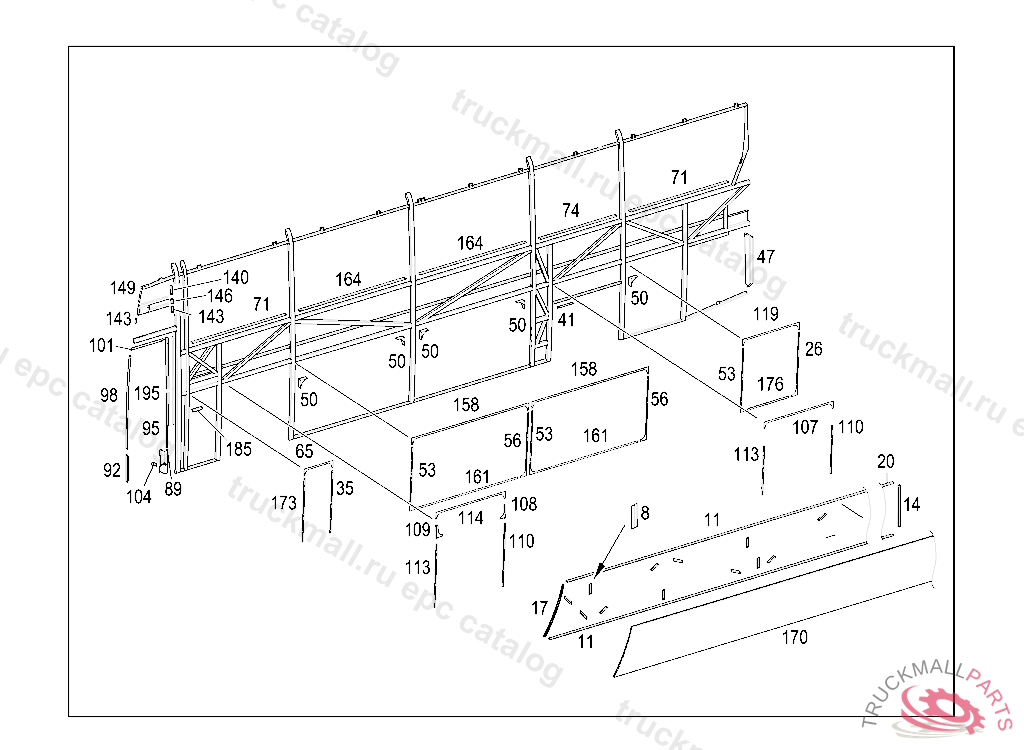

63 SIDE PANELS - 420 LEFT SIDE PANELLING IL. 1

Поз.
Артикул
Описание
8
A6296372414
BRACKET150LG
11
A6326370034
RAIL
14
A6296370295
PAD
17
A6326370195
PAD
20
A6326370495
PAD
26
A6296370512
ANGLE1090MM
35
A6296370112
ANGLE1090MM
50
A6296370015
REINFORCEMENT
53
A6296379872
ANGLE LEFT
56
A6296379972
ANGLE RIGHT
65
A6296320012
ANGLE TOP 520MM
71
A6296373472
ANGLE1955MM
71
A4106370272
ANGLE SIDE WINDOW PANES 1875LG
74
A6296370772
ANGLE1570MM
89
A6326310225
ANGLE
92
A6326310425
ANGLE
95
A6326370192
ANGLE
98
A6326370092
ANGLE
101
A6326370292
ANGLE
104
A6326311425
ANGLE , FROM IDENT NO. 103692 EXCEPT FOR 103693 , 103694 , 103695 ,103759 , 103760 , 103805 , 103806 , 103831
107
A6296379272
ANGLE1272MM
110
A6296376512
ANGLE
113
A6296376612
ANGLE LATERAL
119
A6326374612
ANGLE
140
A6276374792
ANGLE229MM
143
A6326020512
ANGLE310MM
146
A6326020012
ANGLE59MM
149
A6326020112
ANGLE125MM
176
A6296371512
ANGLE BOTTOM 1054LG
185
A6326020612
ANGLE78MM
195
A6326370107
PANELLING
