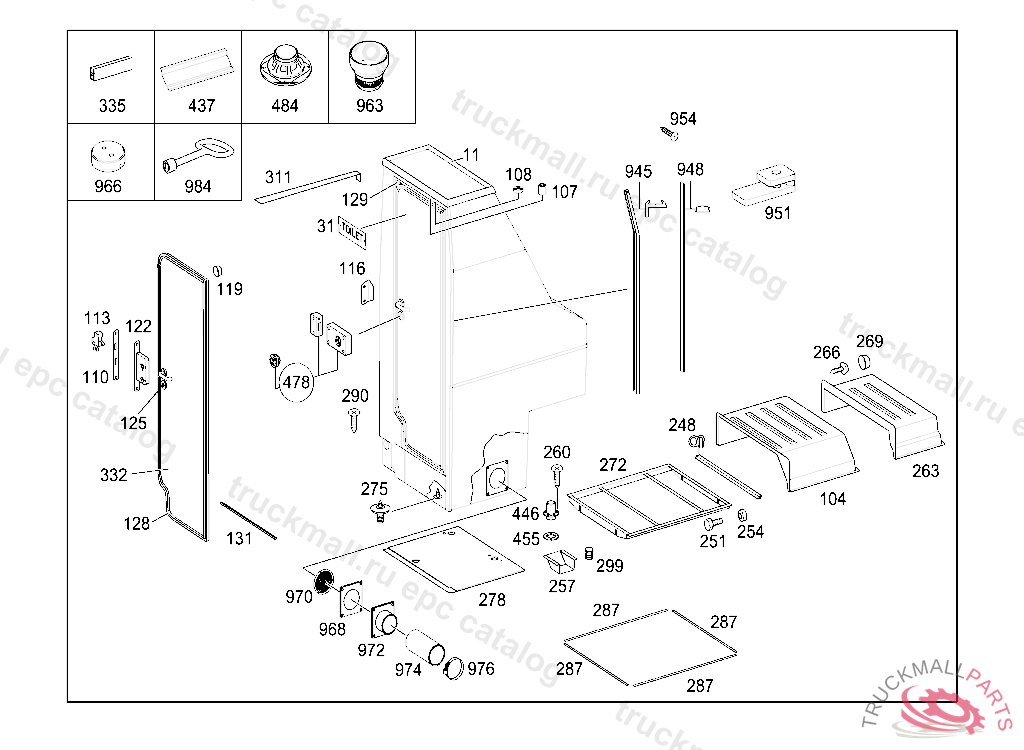

Поз.
Артикул
Описание
11
COVER
11
COVERING
11
COVERING , Replaced By: A0008661930
104
COVERING FECES CONTAINER
107
BUFFER WASHROOM DOOR
108
MOUNTING
110
SWITCH WASHROOM DOOR
113
SWITCH DOOR LOCK
116
STOP DOOR STOP
119
CAP PLASTIC
122
MORTISE LOCK. FASTENER WASHROOM DOOR
125
DOOR HANDLE WASHROOM DOOR
125
DOOR HANDLE VACANT-OCCUPIED SET
128
RUBBER SECTION WASHROOM DOOR, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
129
RUBBER SECTION WASHROOM DOOR, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
131
SEAL
248
GASKET , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
251
SCREW BRACKET TO SIDE MEMBER M8X20
254
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
257
COVERING
260
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
263
COVERING
263
COVERING
266
SHEET METAL SCREW. SCREWST25X 6 T20
269
LOCKING CAP
272
FIXTURE
275
DRAIN WATER DRAIN
278
PLYWOOD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
278
BOTTOM , Replaced By: A0009837380
278
BOTTOM , Replaced By: A0009837380
278
FLOOR , Replaced By: A0009837380
287
ADHESIVE STRIP. BASE40 X 2 MM
290
TAPPING SCREW BRACKET MOUNTING 3.5X25
299
CAP GRIP RAIL
311
COVERING
332
W.C. DOOR. W.C. DOORRHD, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
332
LAVATORY DOOR
335
COVERINGH - PROFIL, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
437
COVERING
446
FITTING
478
FASTENER PNEUMATICALLY CONTROLLED
478
FASTENER MECHANICAL
478
LOCK LAVATORY DOOR MECHANICAL
478
LOCK PNEUMATICALLY CONTROLLED
484
LOUDSPEAKER , Replaced By: A0008275760
484
LOUDSPEAKER. LOUDSPEAKER
945
EDGE TRIMALU, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
948
PLASTIC SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
951
LEDGE
954
TAPPING SCREW3.5X19
954
TAPPING SCREW AT BRACKET 2.9X9.5
963
SMOKE DETECTORORS 142
966
SMOKE DETECTOR SOCKET TO BODY
968
SEAL
970
SCREEN
972
FITTING
974
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
976
CLAMP44 - 60/9
984
SQUARE KEY WASHROOM DOOR
999
SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
COVERING CORNER COVER
999
WASHER
999
TAPPING SCREW MOUNTING, COVER
999
SHEET METAL SCREW. SCREW
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
FASTENER
999
WC TOILET CABIN
999
VALVE FECES CONTAINER
999
RESERVOIR ASHTRAY
999
SOCKET-OUTLET220 V
999
PLUG SOCKET
999
COMPRESSED AIR LINE
999
THREADED UNION
999
SPIRAL SPRING
999
SHAPED SECTIONPVCH - PROFIL GEBOGEN
999
COVER
999
SEAL
999
COVERING
