S 416 GT-HD 2-ACHSER
632.139
52 SHEET METAL,AIR INTAKE

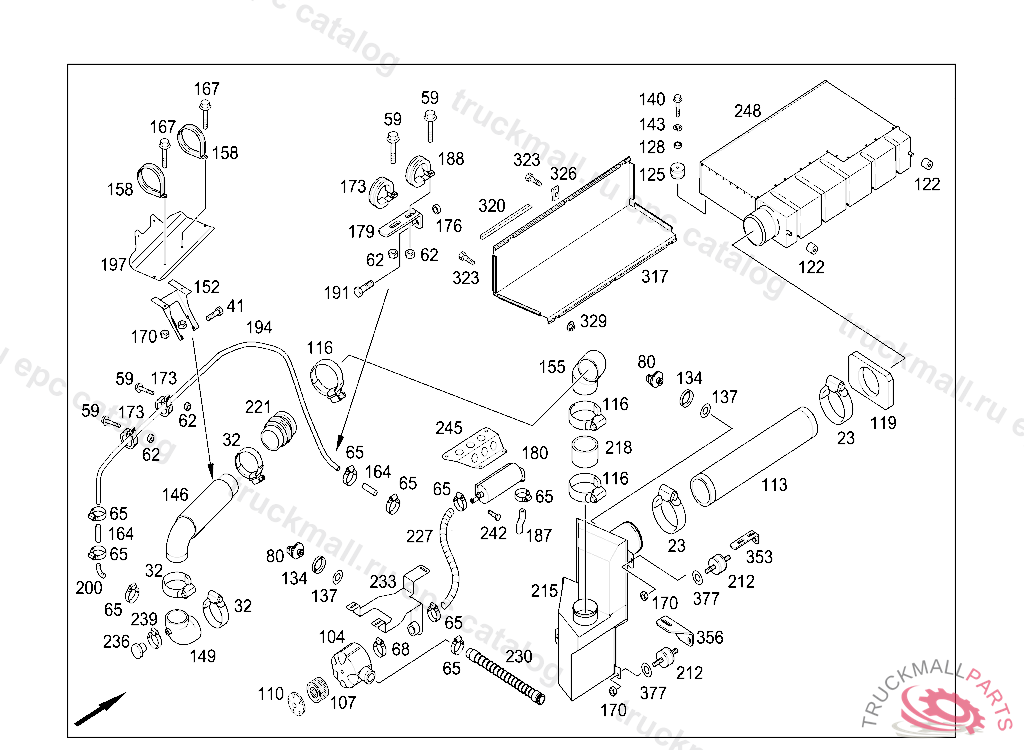

120 AIR INTAKE IL. 1

Mercedes N000000005892 - Хомут 130 / 150 X 13

S 416 GT-HD 2-ACHSER 632.139

52 SHEET METAL,AIR INTAKE - 120 AIR INTAKE IL. 1

Поз.
Артикул
Описание
23
N000000002136
CLAMP180-200X12MM
32
N000000005892
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
32
N000000000678
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
65
N000000002772
CLAMP HOSE TO INTAKE MANIFOLD 25-40X13MM,V 207570
68
N000000000671
CLAMP
68
N000000002774
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
68
N000000003528
CLAMP
80
A0135422917
SENDER UNIT. CONTACT SENSOR
104
A0005280406
AIR CLEANER
107
A0009891311
FILTER ELEMENT
110
A0020940006
COVER
113
A0029975252
HOSE AIR INTAKE HOSE 925MM
116
N000000000680
CLAMP150-170X12MM
119
A6295240192
SEAL
122
A0009872143
RUBBER BUSHING EXPANSION TANK D50X45MM
125
A0009888011
BUFFERD25X10/M6
128
A6299910040
SPACER SLEEVE
134
A0004291127
THRUST RING14X10X2.6MM
137
A0269970248
O-RING
140
N910105006002
HEXAGON HEAD BOLT
146
A6295200902
RESONATOR
155
A6325200001
AIR INTAKE PIPE150MM
158
A0029953201
CLAMP156/25MM
167
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
170
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
180
A0005200002
RESONATOR
187
A0029971752
HOSED28/265LG
212
A0009888111
RUBBER MOUNTING
215
A6295200702
AIR INTAKE CASE
218
A0029976352
HOSED150/100LG
221
A6295280082
HOSED150/130LG
227
A6325280182
HOSE430MM
230
A6325280082
HOSE1600 MM
242
N910105008041
SCREW , Replaced By: N910143008000
245
A6295500254
MOUNTING PLATE
248
A0050906901
AIR CLEANER
320
A0029891698
SEALING STRIP
326
A0049941445
LOCK NUT. LOCK PANELLING TO BUMPER
353
A6295280640
BRACKET
356
A6295280740
BRACKET
377
A0009902769
WASHER MOUNTING PARTS FOR CYCLONE SEPARATOR RESERVOIR 8.4X30X1.6
