Mercedes N916002010100 - ХОМУТ

290 GD 461.403

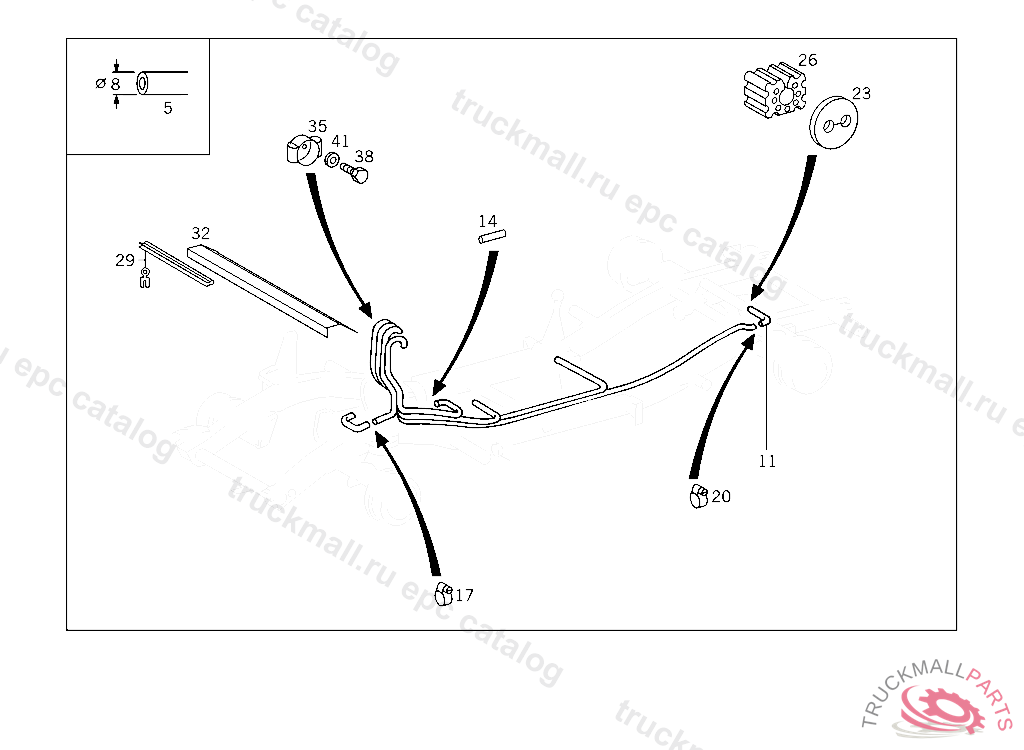

28 TRANSFER CASE - 090 UNIT BREATHING

Поз.
Артикул
Описание
5
A0089979082
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
14
A4639970282
HOSE BREATHER LINE TO REAR AXLE
17
N916002008100
CLAMP RISING PIPE,5 4734955 909351
20
N916002010100
CLAMP LINE MOUNTING
29
A0029876751
RUBBER SEAL , ORDER BY THE METER
32
A4605240901
PROTECTIVE PLATE FRONT
35
A4635250339
BRACKET UNIT BREATHING
35
A4633500390
VALVE , Replaced By: A4635250339
38
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
41
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
41
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
A4615201441
BRACKET UNIT BREATHER
