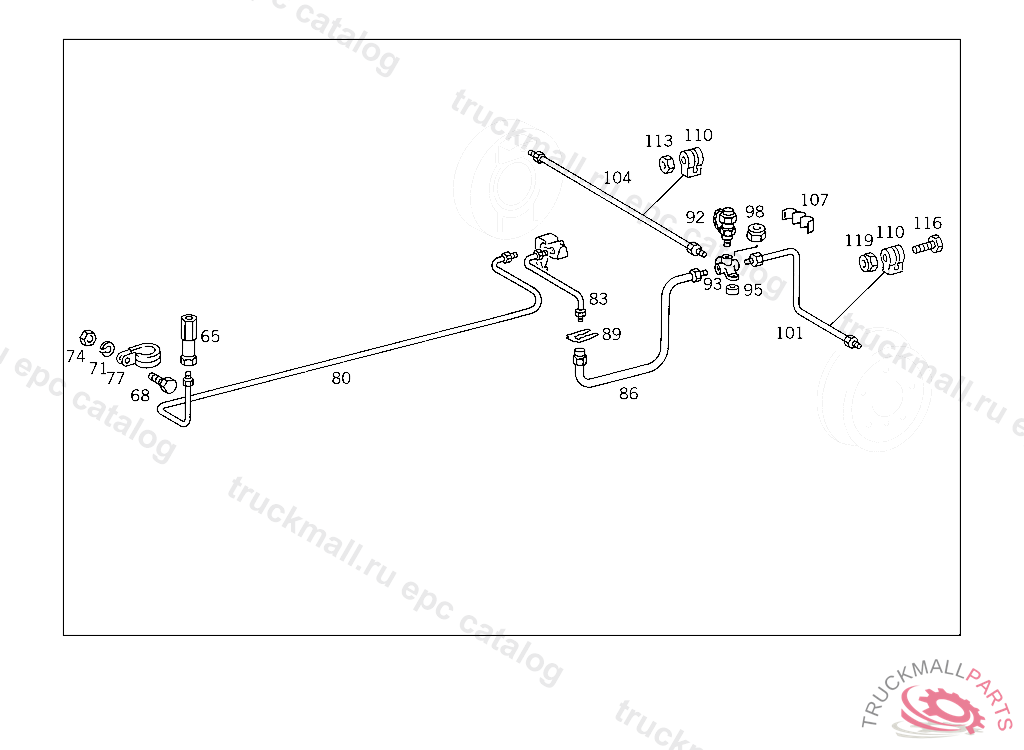

Поз.
Артикул
Описание
65
VALVE , Replaced By: A0004313907
68
SCREW PUMP TO BRACKET
71
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
74
NUT BALL PIVOT TO LEVER
77
CLAMP HOSE TO FLANGE AND TO VALVE
80
LINE FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR, INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
83
LINE , Replaced By: A1234206028
83
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
86
BRAKE HOSE10X450 MM
89
BRACKET BRAKE HOSE TO BRACKET
92
TEST CONNECTION , Replaced By: A0004318731
92
TEST CONNECTION AT DISTRIBUTOR
93
DISTRIBUTOR , Replaced By: A0004284224
95
SPACER RING
98
NUT POWER CYLINDER TO BRACKET
98
NUT , Replaced By: A0009903250
101
LINE FROM HEIGHT CONTROL VALVE TO LEFT SPRING-LOAD ACCUMULATOR
104
LINE FROM HYDRAULIC UNIT TO LEFT FRONT WHEEL, ONLY APPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)F039531
107
BRACKET FROM MASTER CYLINDER TO DISTRIBUTOR,028191
110
CLAMP BRAKE LINE TO SIDE MEMBER
113
NUT BALL PIVOT TO LEVER
116
SCREW LICENSE PLATE TO BRACKET
116
SCREW , Replaced By: N304017006020
119
NUT , Replaced By: N913004006001
119
NUT PUMP TO BRACKET
