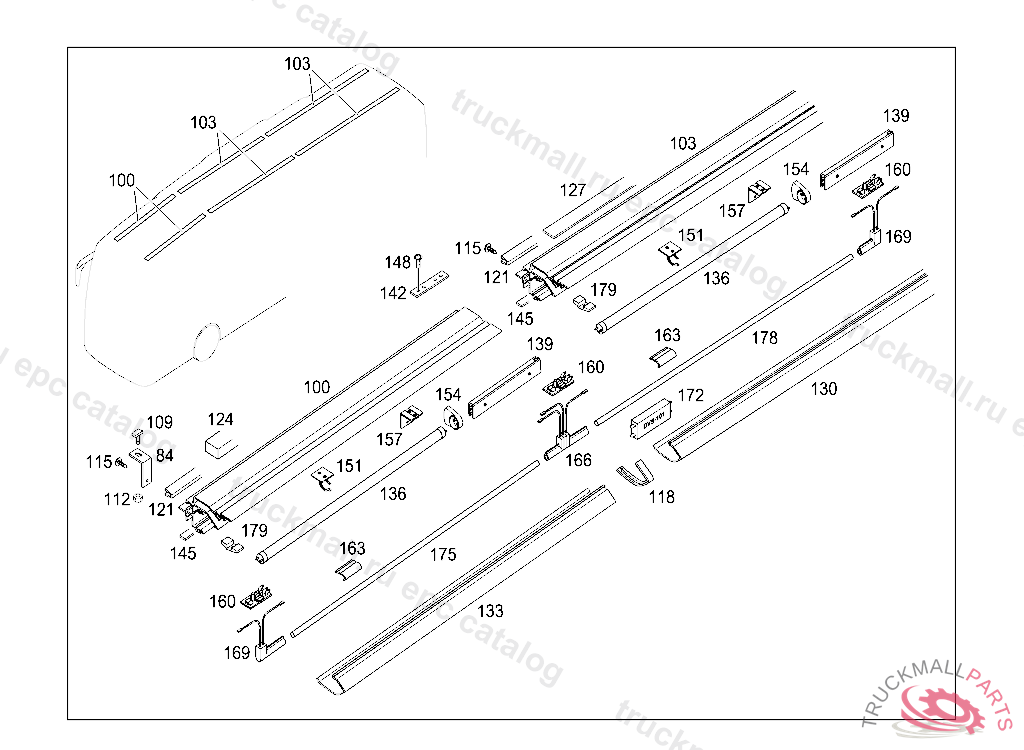

Поз.
Артикул
Описание
84
ANGLE
100
PANELLING FRONT LEFT 1583,4MM
100
PANELLING FRONT RIGHT 1583,4MM
103
PANELLING CENTRAL LEFT L3692,5MM
103
HEADLINER REAR LEFT 4747,5MM
103
HEADLINER REAR RIGHT
103
PANELLING CENTRAL RIGHT 3692,5MM
109
SCREW F CRANKCASEM8X30
112
NUT HORN TO BRACKET M8
115
HEXALOBULAR BOLT SPLASH GUARD M6X16,V 207570
118
COVERING
121
RAIL
124
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
124
INSULATION FRONT
127
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
130
COVER LEFT REAR
130
COVER REAR RIGHT
133
LIGHT STRIP. COVERING FRONT LEFT
133
LIGHT STRIP. COVERING FRONT RIGHT
136
FLUORESCENT TUBE YELLOW 21W,849MM,WARM-WHITE
136
FLUORESCENT TUBE YELLOW 35W,1449MM,WARM-WHITE
139
SERIES REACTOR21W
139
SERIES REACTOR35W
142
PAD15X70MM
145
PLASTIC SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
148
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
151
LAMP BRACKET LAMP
154
SOCKET
157
BRACKET INDIVIDUAL
157
BRACKET LEFT
157
BRACKET RIGHT
157
BRACKET DOUBLE
160
PLATE
163
CLAMP
166
LUMINOUS PLATE DOUBLE LED
169
LUMINOUS PLATE INDIVIDUAL LED
172
ELECTRICAL UNIT FOR DIMMER SWITCH
175
ELECTRIC CABLE LIGHT GUIDE 2043MM
178
ELECTRIC CABLE LIGHT GUIDE 2985MM
179
CLAMP
999
BRACKET ROOF
