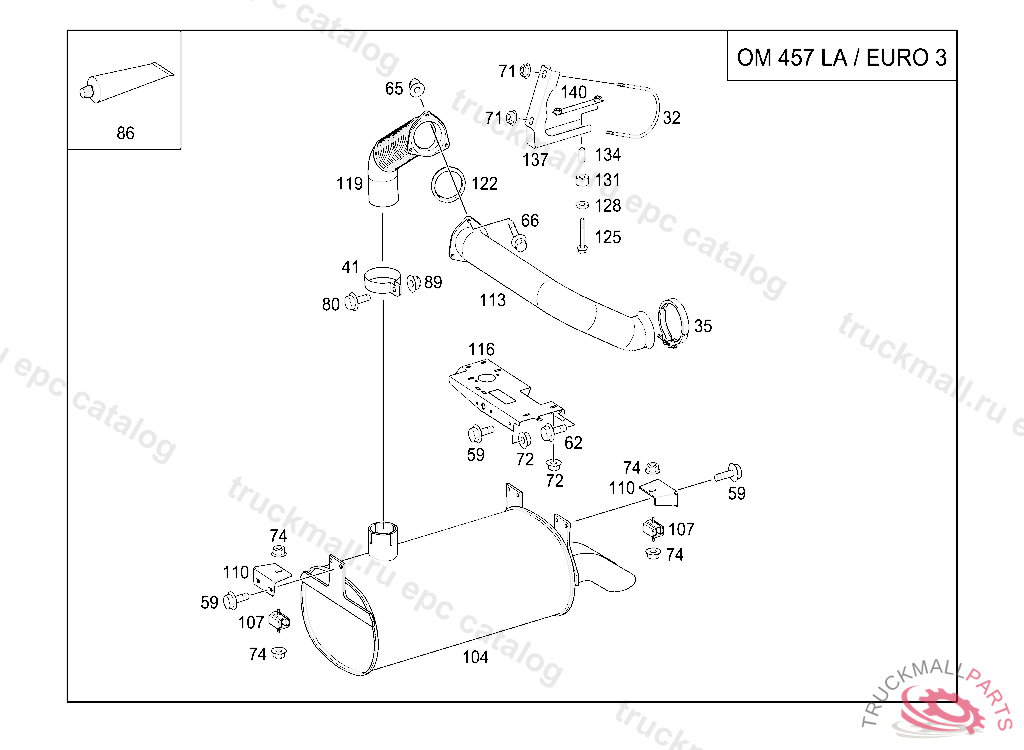

Поз.
Артикул
Описание
32
CLAMP
32
MOUNTING BRACKET ATTACHMENT BRACKET AND EXHAUST PIPE
35
CLAMPD148
35
CLAMP FRONT EXHAUST PIPE TO THROTTLE HOUSING
41
CLAMP EXHAUST SYSTEM D143,5
41
CLAMP , Replaced By: N071555124501
59
SCREW BRACKET TO CAB REAR PANEL M 8X20
62
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 16X25
65
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
66
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
71
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
72
NUT HORN TO BRACKET M8
74
NUT COVER TO P.T.O. CASE
74
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
80
SCREW BRACKET TO SIDE MEMBER M10X35
80
HEXAGON HEAD BOLTM10X35
86
ADHESIVE THREAD LOCK 50G
89
NUT FOR TAPPING SCREW TURBOCHARGER TO EXHAUST MANIFOLD M10, NOT USED
89
NUT , Replaced By: N913023010002
104
MUFFLER
107
RUBBER MOUNTING
110
BRACKET
113
EXHAUST PIPE
116
CONSOLE
119
EXHAUST PIPE
122
FLANGE GASKET EXHAUST LINE FLEXIBLE METAL TUBE
125
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
128
WASHER BRACKET TO CAB REAR PANEL
131
VIBRATION DAMPER
134
PILOT BUSHING
137
BRACKET EXHAUST PIPE
140
FASTENING PLATE
