Mercedes A0006830006 - MONTAGERAHMEN

TRAVEGO RHD 632.245

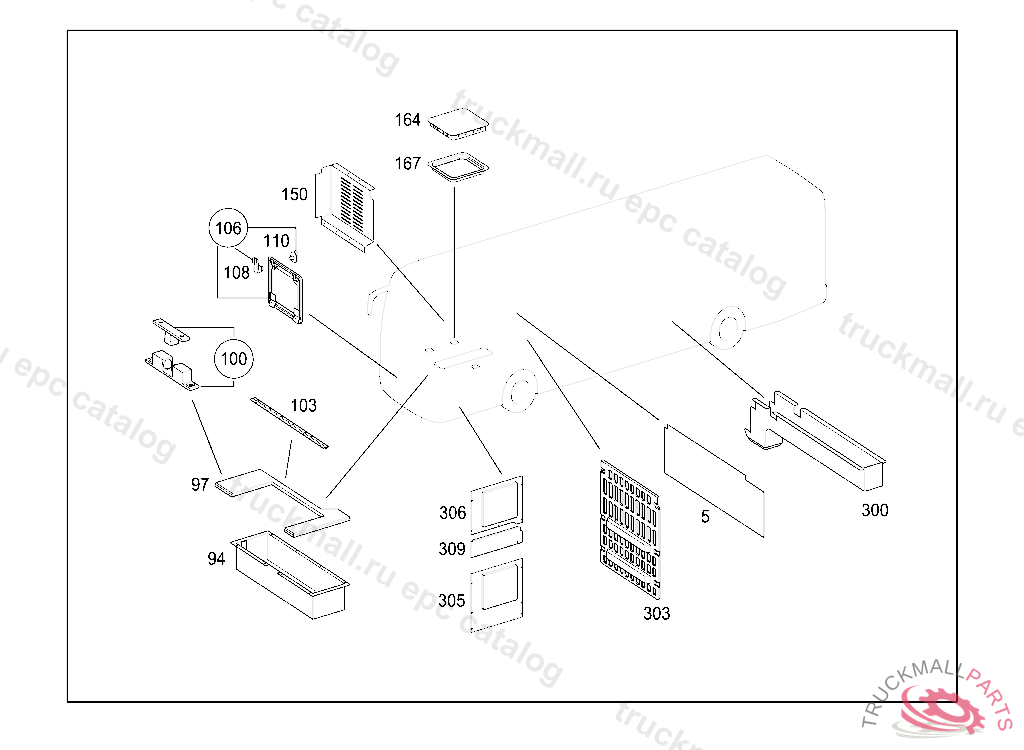

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
5
A6326870107
COVERING , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.05.2009
94
A6326800458
RECESS , Replaced By: A6326800658
94
A6326800058
SHEET-METAL PAN
97
A6326840364
FLOOR FLAP
97
A6326843264
FLOOR FLAP , TO BE ADAPTED DURING ASSEMBLY
100
A0009883063
SNAP LOCK
103
A0006840152
HINGE STRAP32X0.7-3550MM, TO BE ADAPTED DURING ASSEMBLY
106
A6296801607
CLOSING COVER
108
A0009980695
ROTARY CATCH
110
A0009980595
ROTARY CATCH
150
A6326860307
COVER
164
A0006800323
SERVICING COVER
167
A0006830006
FRAME
300
A6326840677
COVER WATER PIPES
303
A6296860407
COVERING CROSS MEMBER 4
306
A6326820816
COVER ELECTRICAL COMPARTMENT
309
A6326820916
COVER ELECTRICAL COMPARTMENT
