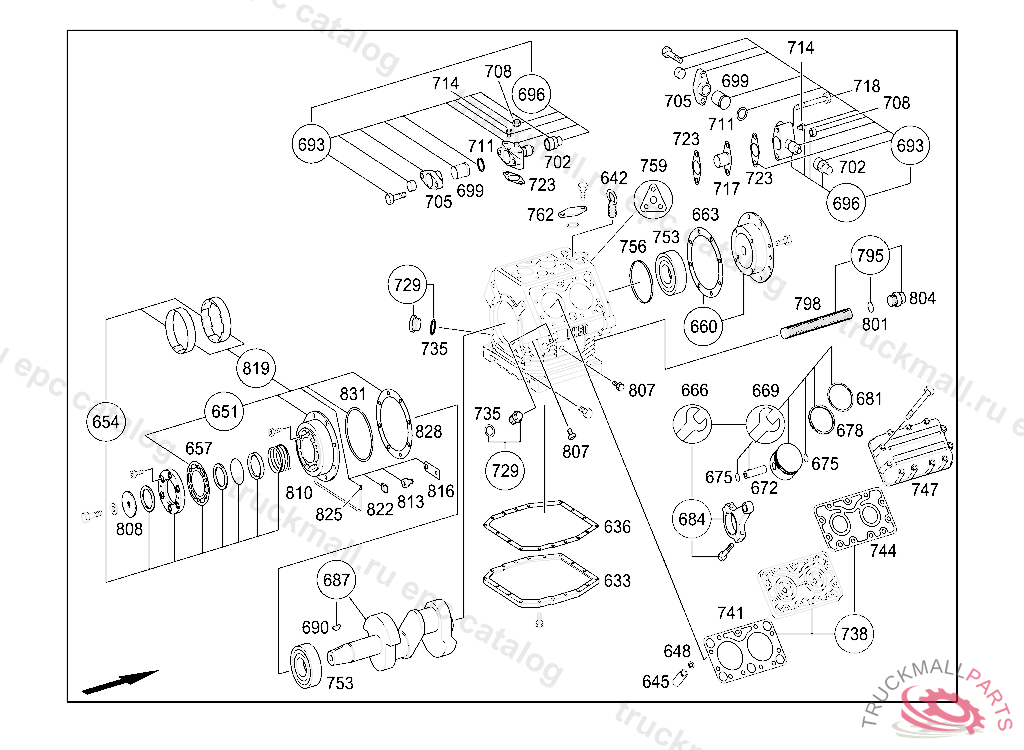

Поз.
Артикул
Описание
633
PLATE
636
WEATHERSTRIP
642
SCREW
645
VALVE
648
SEAL
651
MOUNTING
654
BEARING CAP REPAIR KIT
657
GASKET
660
OIL PUMP (PARTS KIT),OIL PUMP
663
GASKET
666
PISTON REPAIR KIT FKX50/775K
669
PISTON DIA., 65 MM FKX 40/655K
672
PISTON PIN15X10X50MM
675
LOCKFKX 40/655K
678
PISTON RINGFKX 40/655K
681
PISTON RINGFKX 40/655K
684
CONNECTING RODTO A 002 830 58 60
687
CRANKSHAFTTO FKX50/660K,TO A 002 830 58 60
690
SPRING
693
VALVE SHUT-OFF VALVE
696
VALVE BODY
699
PIPE SOCKET
702
NUTM22X1,5
705
FLANGE16MM
708
NUT7/16"
711
GASKET34X42 MM
714
SCREW SRREW PLUG 1/8"
717
STRAINER ON SUCTION SIDE
718
HEXAGON HEAD BOLT MOUNTING,GAS CYLINDERS M10X110
723
GASKET"KONVEKTA", UP TO IDENT NO. IN CASE OF KONVEKTA 096427, IN CASE OF WEBASTO 096251 EXCEPT FOR 096457,096458
729
SIGHT GLASS
735
SEAL RING
738
VALVE DISC PARTS KIT
741
SEAL
744
GASKET
747
COVER
753
CYLINDR. ROLLER BEARING
756
TOLERANCE RING
759
GASKET KIT
762
FLANGE15MM
795
STRAINER
798
STRAINER
801
SEAL27X22X2MM
804
SCREW SRREW PLUG M22X1,5
807
SCREW SRREW PLUG 1/8"
808
WASHER CRANKSHAFT 50X12,5X8MM
810
PLATE
813
SCREW
816
HOSE BRACKET
819
SEAL RING
822
CLAMP
825
PLUG
828
GASKET FRONT
831
SEAL RING101.19X3.53MM
999
BEARING DIA., 31X33,8MM
999
INTERMEDIATE PIECE PARTS KIT, TO BE ADAPTED DURING ASSEMBLY
999
GUIDE SIGNDEA SE 55
999
GUIDE SIGNR134A
999
OIL SCRAPER RINGFKX 40/560K
999
TAPER-FACED RINGFKX 40/560K
999
SEAL42X36X1,5MM
