Mercedes A6293230900 - LU STOSSDAEMPFER

TRAVEGO RHD 632.245

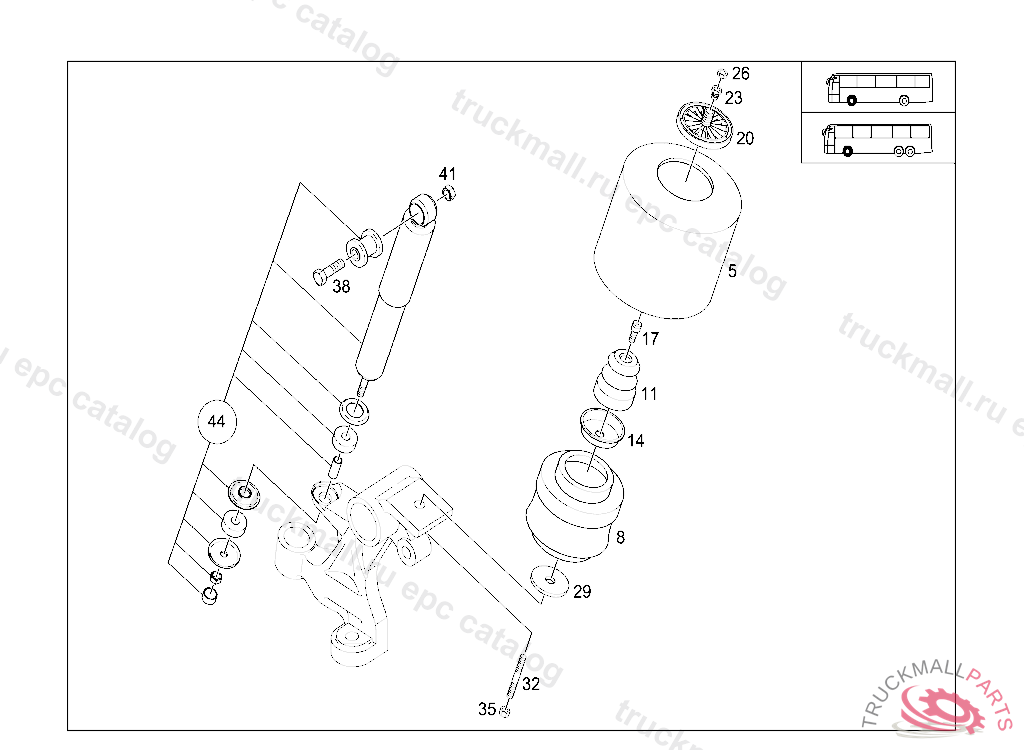

32 SPRINGS AND SUSPENSION - 545 PNEUMATIC SUSPENSION & STABILIZATION ON FRONT AXLE IL. 1

Поз.
Артикул
Описание
5
A6283230092
BELLOWS. BOOT
8
A6283200018
AIR BELLOW PISTON123 MM
11
A6283210006
HELPER SPRINGHOEHE 80, Replaced By: A6283210007
14
A6283220087
CENTERING DISCHOEHE 23
17
A0003210071
SCREW
17
A6329970001
HOLLOW SCREW
20
A6283200535
PLATE
23
A0009974734
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
26
A0029909550
NUTM24X1.5-14H
29
A6293280135
PLATED 80X15
32
N000000005423
STUD BOLT RETARDER M16X1.5X70
35
N000000005462
NUT. SCREW ADJUSTER STOP
38
N000000005576
HEXAGON HEAD BOLT. SCREWM 20X1,5X110
41
N000000005740
NUT SHOCK ABSORBER TO BRACKET M20X1.5
41
N913023020001
NUT TRAILER COUPLING TO REAR CROSS MEMBER
44
A6323230000
SHOCK ABSORBER COMPLETE
44
A6293230900
SHOCK ABSORBER COMPLETE NEUV 45 X 210 HA, Replaced By: A6293231800
44
A6293231800
SHOCK ABSORBER
