Mercedes A6328407560 - LU MINIKUECHE

TRAVEGO RHD 632.245

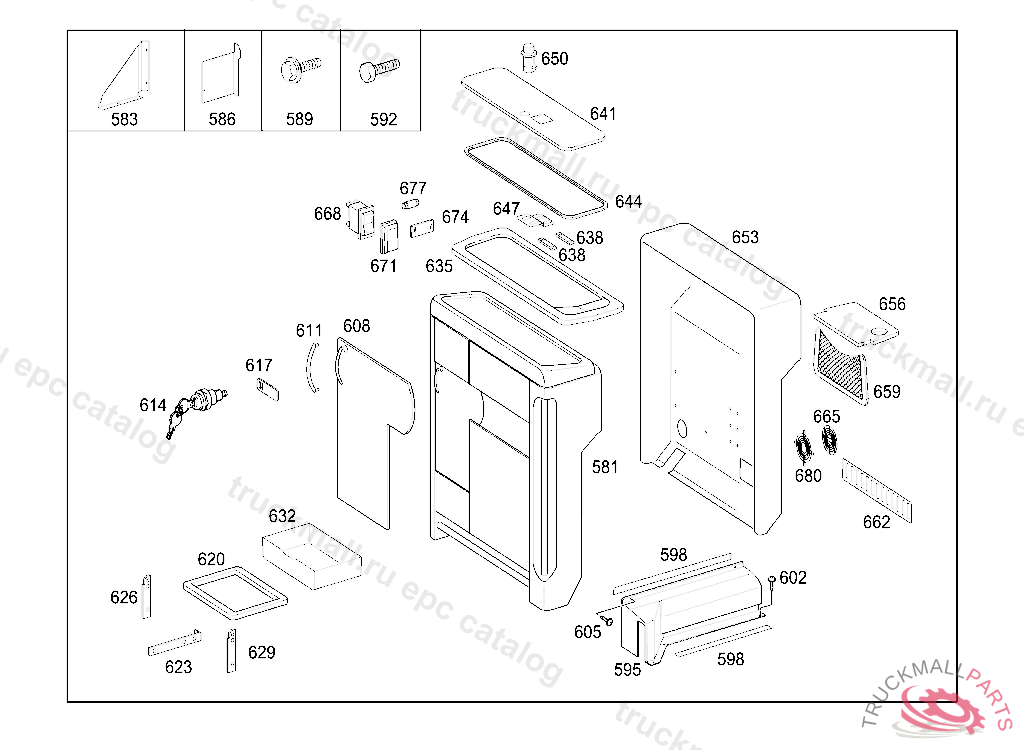

84 TRUNKS AND CASES - 150 KITCHENETTE IL. 9

Поз.
Артикул
Описание
581
A6328407560
MINIATURE KITCHENFOB595
583
A0008451127
COVER
586
A0008451227
COVER
589
A0009901729
SCREWM8X40
592
N910105008010
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
595
A6298363102
COVERING
598
A0009872266
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
602
N000000000489
TAPPING SCREW4.5X13
605
N000000002436
HEXALOBULAR BOLTM6X16
608
A6327100002
SLIDING DOOR
611
A6329880230
BOW-TYPE HANDLE
614
A6328400085
LOCK CYLINDER
617
A6328460066
BOLT
620
A6328430475
HINGED DOOR
623
A6328850059
CHECK STRAP
626
A6328460055
FIXTURE
629
A6328460155
FIXTURE
632
A6328460269
STORAGE SPACE
635
A6328431055
COVER FRAME DEEP FREEZER
638
A0008480152
HINGE PIN
641
A6328430375
HINGED DOOR DEEP FREEZER
644
A6328450098
GASKET DEEP FREEZER
647
A6328440112
ANGLE FOR FLAP
650
A0008440184
FASTENER
653
A6328430558
REAR WALL
656
A6328160001
FOLDING TABLE WITH HOLE
659
A6328140107
LUGGAGE NET
662
A6325000016
AIR BAFFLE
665
A6328880017
TRIM RING
668
A0098207010
SWITCH
671
A0008211433
CAP
674
A0018204701
INTERIOR LAMP
677
A6705440094
BULB
680
A0008431218
GRILLE
999
A0008130437
COVERING ASHTRAY
999
A0008200869
CABLE HARNESS
999
A0008201637
CLUTCH
999
A0008202606
BOILER
999
A0008203106
CONTINUOUS-FLOW HEATER
999
A0008203206
CONTINUOUS-FLOW HEATER
999
A0008203906
BOILERVST
999
A0008204706
BOILER
999
A0008207898
HEATING ELEMENT
999
A0008231711
PLATE
999
A0008321259
FITTING ELBOW FITTING
999
A0008360252
HINGE
999
A0008400055
TAKE-UP DEVICE
999
A0008430330
COVERING
999
A0008430614
CUP HOLDER
999
A0008430714
CUP DISPENSER
999
A0008450058
VALVE
999
A0008451214
BRACKET LEFT
999
A0008452223
CONTAINER
999
A0008453323
CONTAINER WATER RESERVOIR
999
A0009918070
CLIP
999
A0009942403
WASHER
999
A0009970404
THROTTLE
999
A0009977271
FITTING
999
A0018320323
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0029971468
CONNECTOR
999
A0035404605
CABLE HARNESS
999
A0035454605
CONTROL UNIT CENTRAL LUBRICATION
999
A0038201326
CONTROL UNIT
999
A0118200110
SWITCH
999
A6298404160
KITCHENETTE
999
A6298405660
KITCHENETTE
999
A6328405960
MINIATURE KITCHEN
