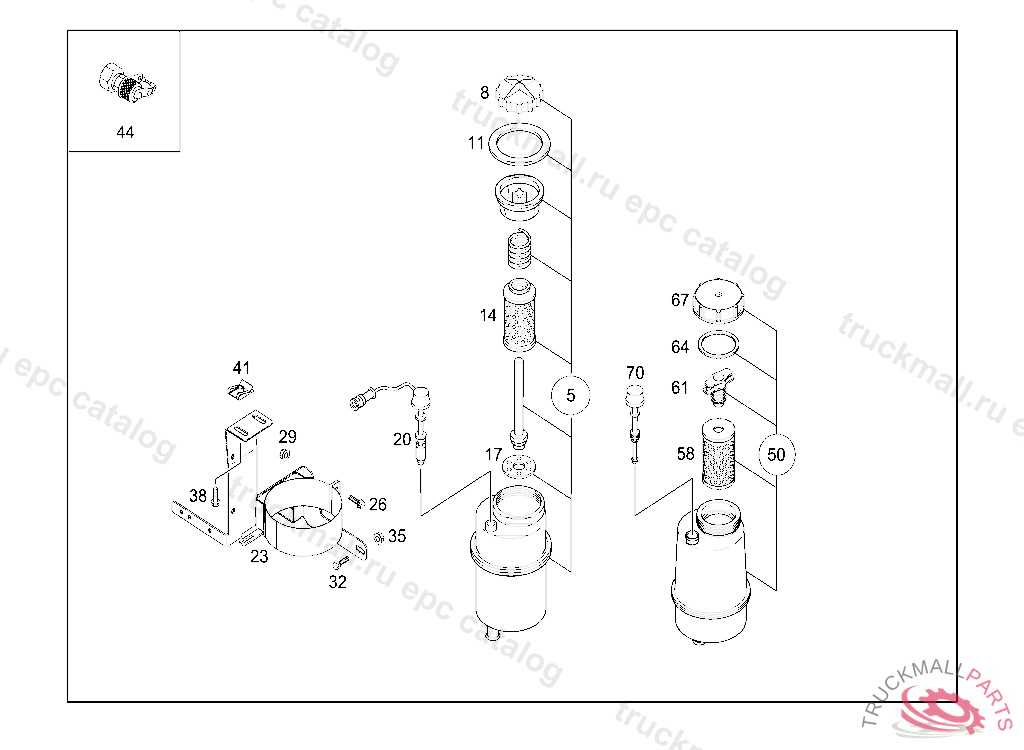

Поз.
Артикул
Описание
5
TANK OIL TANK
8
STEERING BOX COVER OIL
11
SEAL RING , FOR USE WITH POWER STEERING019394
14
FILTER , 993034
14
FILTER , Replaced By: A0004660004
17
SPRING , 993034
20
FILL-LEVEL SENSORTO A 000 460 39 83
23
BRACKET OIL TANK
26
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
26
SCREW , Replaced By: N914146006102
29
NUT , Replaced By: N913023006001
32
SCREWM 10X20
35
NUT , Replaced By: N913023010002
38
SCREW BRACKET TO CAB REAR PANEL M 8X20
41
NUT
44
TEST CONNECTION
50
OIL RESERVOIR, STEERING OIL, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.12.2007
58
OIL FILTER
61
BRACKET
61
BOLT LOCK , Replaced By: A0004660740
64
GASKET , Replaced By: A0004661760
64
SEAL RING
67
COVER
70
FILL-LEVEL SENSORTO A 000 460 39 83
