Mercedes A6297500344 - ZB LEITTEIL

TRAVEGO RHD-M 632.246

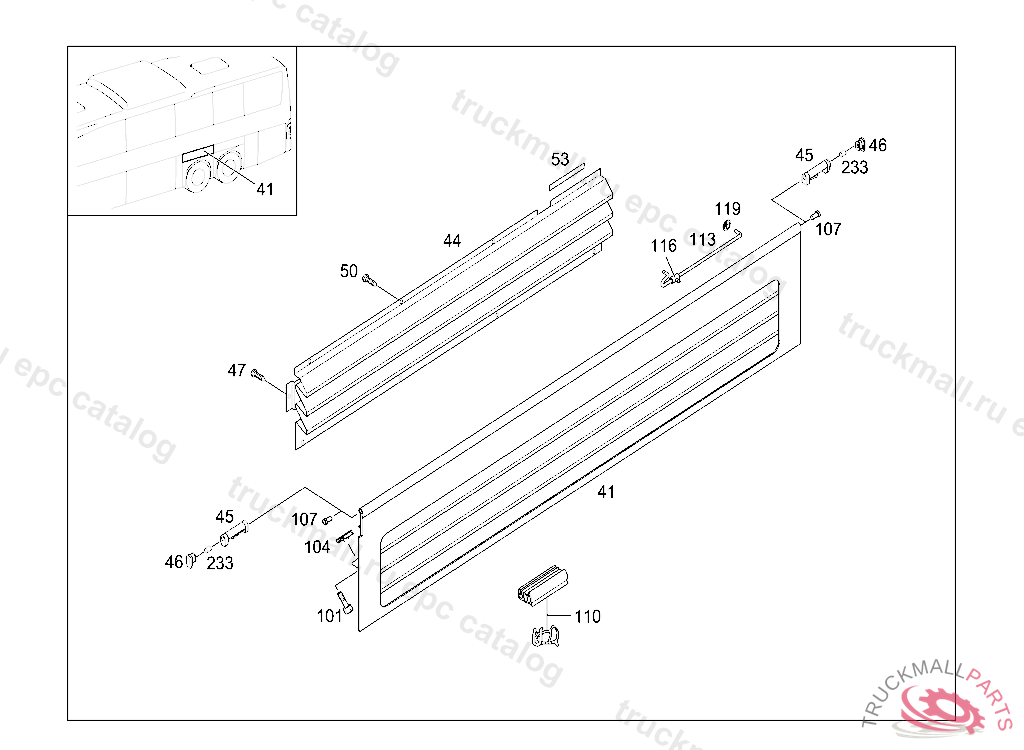

75 OUTSIDE FLAPS - 050 SIDE FLAPS,WHEEL COVERING IL. 10

Поз.
Артикул
Описание
41
A6297500013
FLAP
41
A6297501395
FLAP
44
A6297503344
VENTILATION PART
44
A6297500344
VENTILATION PART
45
A0009927003
BUSHING
46
A0009983823
PROTECTIVE CAP
47
N000000001526
HEXALOBULAR BOLTM5X12
50
N000000000527
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
53
A0029890998
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
N910105008041
SCREW , Replaced By: N910143008000
104
A0049941945
NUTM8
107
A0009926205
BUSHING
110
A0007570474
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
113
A6297550083
SUPPORT
116
A0009956914
BRACKET
119
A0009943510
LOCK
233
A0003531221
DIFFERENTIAL PINION SHAFT
