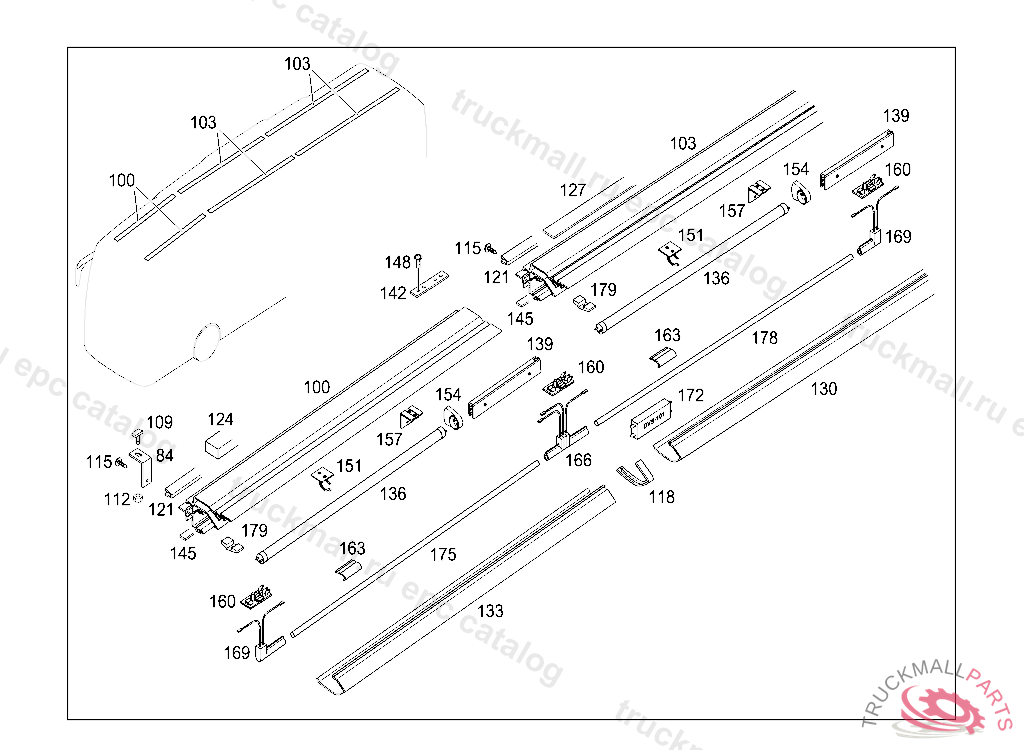

Поз.
Артикул
Описание
84
ANGLE
100
PANELLING FRONT RIGHT 1583,4MM
103
PANELLING CENTRAL LEFT L3672MM
103
PANELLING FRONT LEFT 1583,4MM
103
PANELLING REAR LEFT L5588MM
103
PANELLING REAR RIGHT L5588MM
103
PANELLING CENTRAL RIGHT L3672MM
109
SCREW F CRANKCASEM8X30
112
NUT HORN TO BRACKET M8
115
HEXALOBULAR BOLT SPLASH GUARD M6X16,V 207570
118
COVERING
121
RAIL
124
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
124
INSULATION FRONT
127
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
130
LENS LEFT REAR ABDECKUNG
130
COVERING REAR RIGHT
133
COVERING FRONT LEFT
133
COVERING FRONT RIGHT
136
FLUORESCENT TUBE YELLOW 21W,849MM,WARM-WHITE
136
FLUORESCENT TUBE YELLOW 35W,1449MM,WARM-WHITE
139
SERIES REACTOR35W
139
SERIES REACTOR21W
142
PAD15X70MM
145
PLASTIC SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
148
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
151
LAMP BRACKET LAMP
154
SOCKET
157
BRACKET DOUBLE
157
BRACKET LEFT
157
BRACKET INDIVIDUAL
157
BRACKET RIGHT
160
PLATE
163
CLAMP
166
LUMINOUS PLATE DOUBLE LED
169
LUMINOUS PLATE INDIVIDUAL LED
172
ELECTRICAL UNIT FOR DIMMER SWITCH
175
ELECTRIC CABLE LIGHT GUIDE 2043MM
178
ELECTRIC CABLE LIGHT GUIDE 2985MM
179
CLAMP
999
INTERIOR LAMP LUGGAGE COMPARTMENT LAMP
999
BRACKET ROOF
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
BULB24 V 10 W
