Mercedes A0008212914 - HALTER T-FUEHLER F.S

TRAVEGO RHD-L 632.247

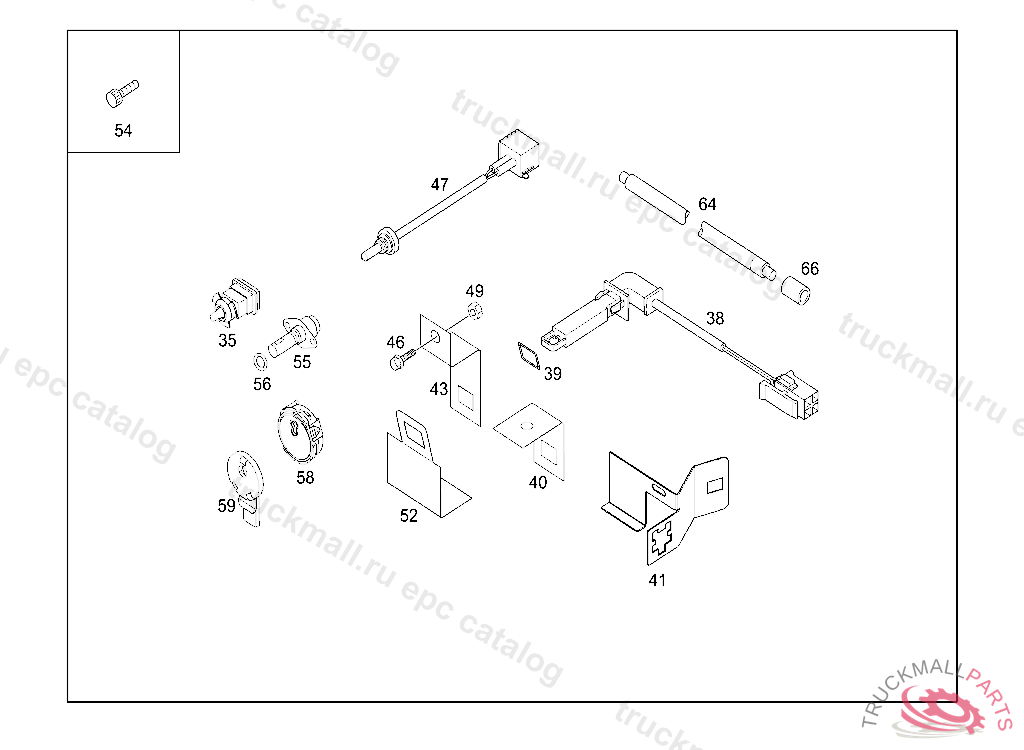

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 455 PRESSURE SWITCH, TRANSMITTER AND SENSORS IL. 2

Поз.
Артикул
Описание
35
A0115429617
SENDER UNIT OUTBOARD TEMPERATURE FEELER,126372
38
A0078200810
TEMPERATURE SENSOR
39
A0269977048
SEAL RING
40
A6326950614
BRACKET SCREWED
41
A0008214614
BRACKET TEMPERATURE SENSOR
43
A0008213014
BRACKET
46
N910105006002
HEXAGON HEAD BOLT
46
N000000002925
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
46
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
49
N910112006001
NUT , Replaced By: N913023006001
49
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
49
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
49
N000000006148
NUT-AND-WASHER ASSEMBLY. NUTM4
52
A0008212914
BRACKET GLUED VERSION
54
A0005450171
SCREW
55
A0071531128
TEMPERATURE SENSOR MOISTURE TEMPERATURE SENSOR
56
A1029970045
SEAL RING12X2
58
A9305400145
RAIN/LIGHT SENSOR RAIN/LIGHT SENSOR
64
A0005463901
ELECTRICAL CABLE. ELECTRIC CABLE1X50MM2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
66
A0009970581
GROMMET5.0 MM
