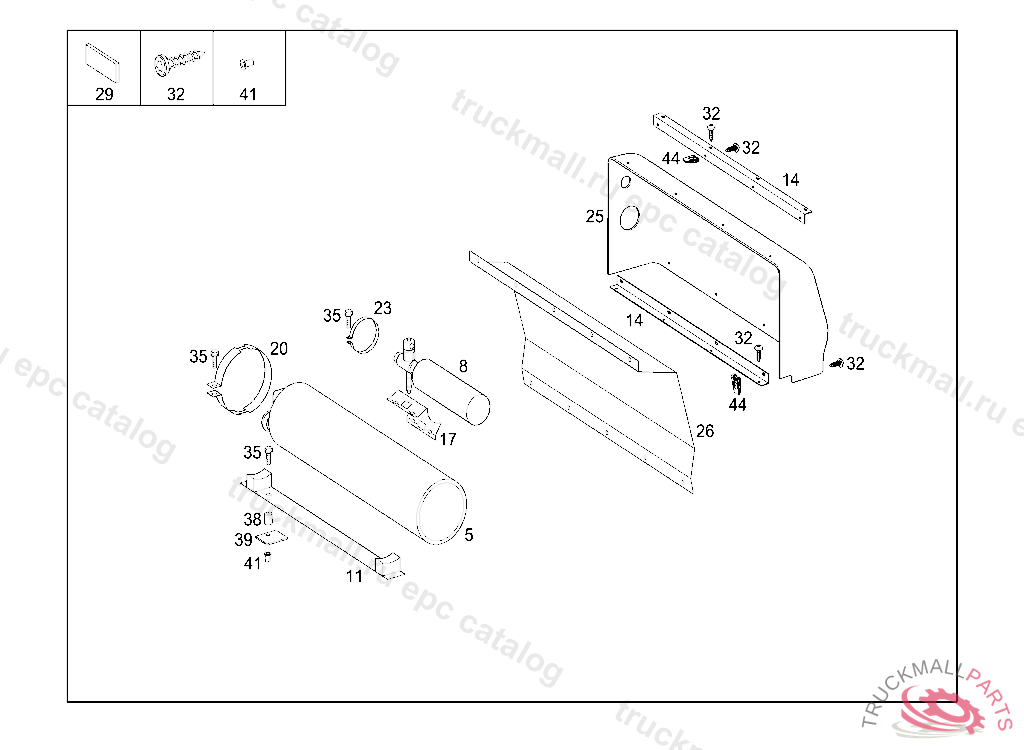

Поз.
Артикул
Описание
5
WATER CONTAINER EXTINGUISHING AGENT 6,5 L
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT ANSCHL. 90 GRAD2DR. SCHALTER
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT
11
BRACKET
14
ATTACHMENT ANGLE BRACKET
17
CONSOLE
20
STRAP
23
CLAMP , Replaced By: A0059972990
25
COVER
26
EXG. AGENT TANK COVER
29
INSULATION1000X1000MM, ABMESSUNG ANGEBEN
32
SHEET METAL SCREW BRACKET TO SUPPORT
35
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
38
DISTANCE SLEEVE
39
FASTENING PLATE
41
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
44
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
