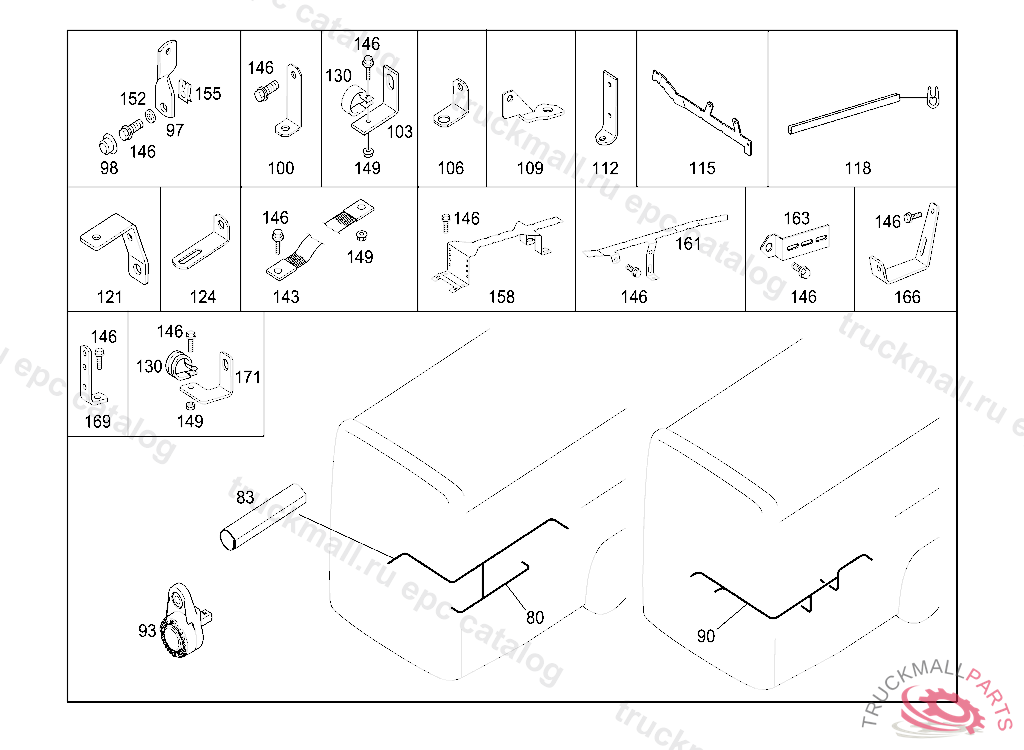

Поз.
Артикул
Описание
80
ELECTRICAL WIRING HARNESS ENGINE CABLE HARNESS OM 502 LA/ EURO 4
80
ELECTRICAL WIRING HARNESS ENGINE CABLE HARNESS OM457LA EURO4
80
CABLE HARNESS ENGINE CABLE HARNESS OM457LA EURO4, Replaced By: A6325405713
80
CABLE HARNESS ENGINE CABLE HARNESS OM 502 LA/ EURO 4, Replaced By: A6325405813
83
HOSE I.D., 30MM, ORDER BY THE METER
90
ELECTRICAL WIRING HARNESS TRANSMISSION MPS, STATE IDENT NO. WHEN ORDERING
90
ELECTRICAL WIRING HARNESS TRANSMISSION WITH RETARDER MPS, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.12.2011
90
ELECTRICAL WIRING HARNESS TRANSMISSION MPS, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.11.2011
97
BRACKET BRACKET TO HEAT EXCHANGER
100
BRACKET BRACKET TO TRANSMISSION
100
BRACKET BRACKET TO TRANSMISSION
100
BRACKET
100
BRACKET
103
BRACKET
106
BRACKET ENGINE CABLE HARNESS
106
ATTACHMENT ANGLE BRACKET
109
BRACKET
109
BRACKET
112
BRACKET ALTERNATOR
115
BRACKET BELOW TRANSMISSION
118
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
121
BRACKET AT OIL PAN
124
BRACKET BRACKET TO TRANSMISSION
124
BRACKET
124
BRACKET
130
CLAMP LINE MOUNTING 15-18 MM,V 207570
130
CLAMP35/20, Replaced By: N000000007514
130
CLAMP10/15
130
CLAMP22/15, Replaced By: A0019951442
130
CLAMP LINE MOUNTING
130
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
130
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
143
GROUND STRAP24X3X450
146
SCREW BRACKET TO CAB REAR PANEL M 8X20
146
SCREW BRACKET AND CLAMP M6X20
146
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLYM6X20
146
SCREW , Replaced By: N910143008002
146
HEXAGON HEAD BOLT
146
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
146
SCREW PIPE ELBOW TO BRACKET M8X12
146
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
146
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
146
HEXAGON HEAD BOLT , Replaced By: N910105006024
146
SCREW , Replaced By: N910143008000
146
COMBINATION BOLT , Replaced By: N304017006016
146
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
149
NUT SPRING-LOADED PUSH ROD
149
NUT , Replaced By: N913023006001
149
NUT-AND-WASHER ASSEMBLY EVAPORATOR HOUSING TO CROSSMEMBER M6
149
NUT , Replaced By: N304032005005
149
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
149
NUT
149
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
149
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
149
NUT
152
SPRING WASHER BRAKE SHOE WITH LINING
152
SPRING WASHER CABLE TO ALTERNATOR
152
SPRING WASHER CABLE TO ALTERNATOR
152
WASHER LINE MOUNTING
155
LOCK. NUT , Replaced By: A0039941745
