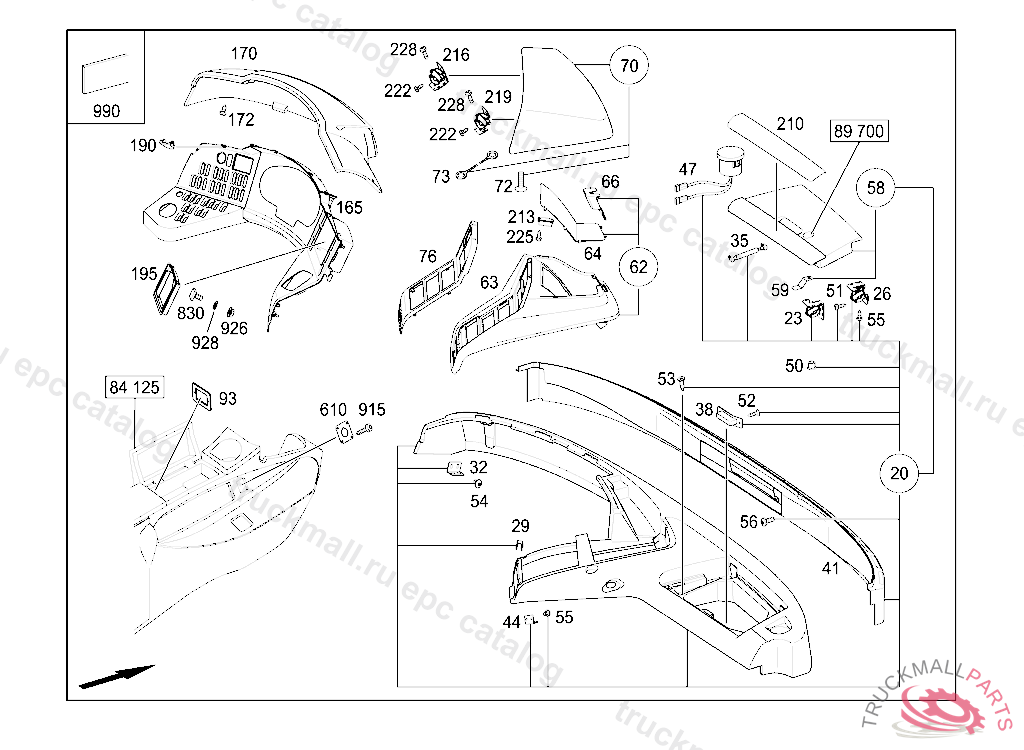

Поз.
Артикул
Описание
20
COWLING COCKPIT AREA
23
CUP HINGE LEFT
26
CUP HINGE RIGHT
29
ATTACHMENT ANGLE BRACKET
32
ANGLE
35
SPRING
38
FALLING LATCH
41
AIR DUCT
44
BRACKET
47
REED CONTACT SWITCH
51
TAPPING SCREW BRACKET MOUNTING
52
TAPPING SCREW3,5X16MM
53
TAPPING SCREW
53
TAPPING SCREW. SCREW HANDLE TO BACKREST
54
TAPPING SCREW BRACKET TO SUPPORT
55
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
56
TAPPING SCREW MOUNTING PARTS 4.8X16
58
COVERING DEEP FREEZER
59
LATCH TONEUE
62
MOLDING FOR SWITCH FLAIR
62
MOLDING FOR SWITCH FASHION
63
COVERING FASHION
63
COVERING FLAIR
64
COVER FASHION
64
COVER FLAIR
66
COVERING FLAIR
66
COVERING FASHION
70
COVER
72
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M6X10, Replaced By: A0019844329
73
HOLDING ROPE
76
BEAM FLAIR
76
BEAM FASHION
93
FASTENING PLATE
165
INSTRUMENT MOUNT
165
INSTRUMENT MOUNT
170
COVERING
172
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
190
COVER CAP
195
COVERINGVDO
195
COVERING
210
HANDLE FLAIR
210
HANDLE FASHION
213
MAGNET
216
CUP HINGE LEFT
219
CUP HINGE RIGHT
222
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
225
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
228
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M4X12,V 202043
610
BRACKET FOR SOCKET
830
T-SCREW
915
TAPPING SCREW2,9X13
926
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
928
WASHER BRACKET TO BATTERY CASE BRACKET
990
FELT STRIP SELF-ADHESIVE 15X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
