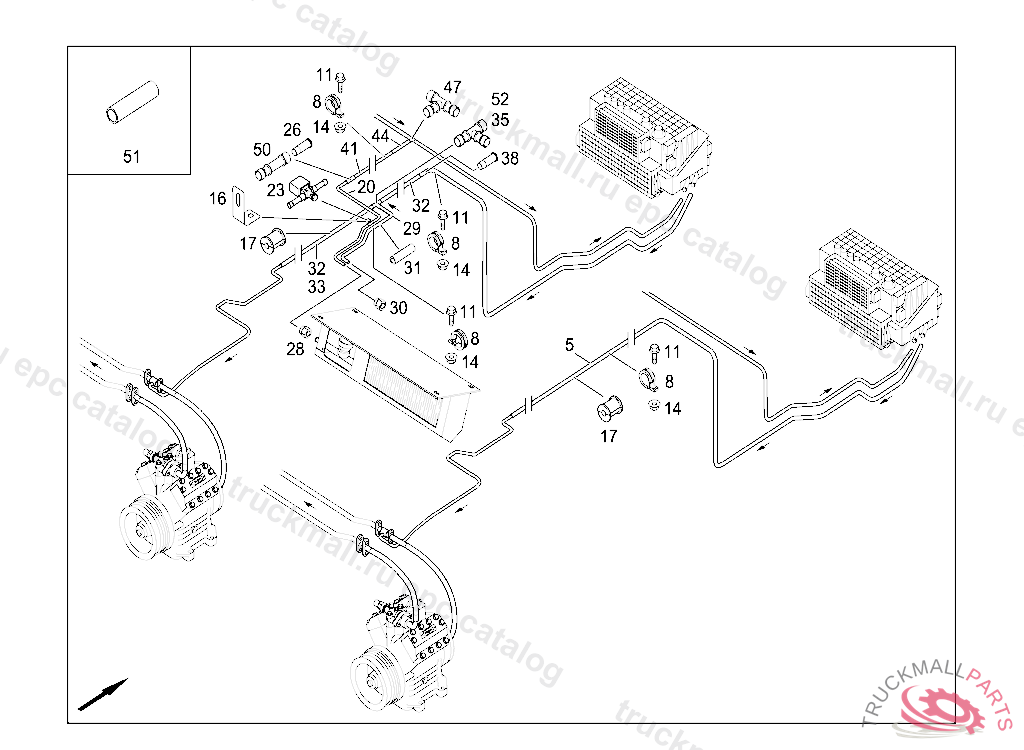

Поз.
Артикул
Описание
5
COOLANT LINE SUCTION LINE D16MM/8200MM
5
REFRIGERANT LINED16/10500MM
8
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
8
CLAMP16/15, Replaced By: A0019950842
8
CLAMP22/15, Replaced By: A0019951442
8
CLAMP28/15, Replaced By: A0019951842
8
CLAMP LINE MOUNTING
8
CLAMP42/20, Replaced By: N000000007548
8
CLAMP LINE MOUNTING
8
CLAMP35/20, Replaced By: N000000007514
8
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
8
MOUNTING CLAMP16/15
8
CLAMP45/20
8
CLAMP42/20
8
CLAMP38/20
8
CLAMP10/15
8
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 25/15 MM
8
MOUNTING CLAMP28/15
8
MOUNTING CLAMP22/15
8
CLAMP35/20
11
SCREW BRACKET AND CLAMP M6X20
11
SCREW , Replaced By: N910143008002
14
NUT , Replaced By: N913023006001
14
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
16
BRACKET EXHAUST PIPE
17
BUSHING
20
PIPE LINED10
20
COOLANT LINE FEED 1130MM, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 20.06.2010
23
VALVE TWO-WAY ALCO
26
SLEEVE10MM
28
NUT
29
PIPE LINE
29
REFRIGERANT LINE RETURN 740MM, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 20.06.2010
30
NUT3/4UNF,THERMO KING
31
INSULATING HOSE12X26MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
32
REFRIGERANT LINE RETURN D16/6500MM
32
COOLANT LINE. PIPE LINE9700MM
33
REFRIGERANT LINE RETURN D16/3000MM
35
T-FITTING16/16/16
38
SLEEVED15,8/13,5MM
41
REFRIGERANT LINED10/6500MM
44
PIPE LINE COOLANT LINE D10
47
T-FITTING
50
INTERMEDIATE PIECE
51
INTERMEDIATE PIECE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
52
T-FITTING
