Mercedes A6329130011 - BLECHPLATTE, FREIKON

TRAVEGO RHD-L 632.247

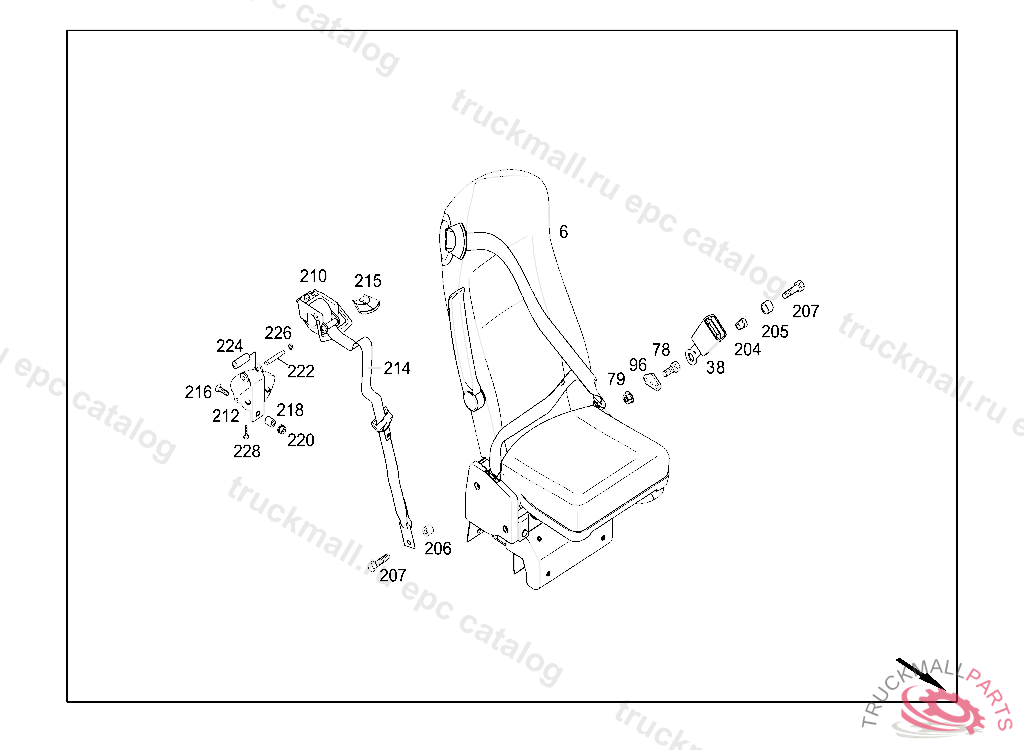

91 FRONT SEATS - 060 CO-DRIVER'S SEAT IL. 4

Поз.
Артикул
Описание
6
A6329101003
FRONT SEAT ELECTRICALLY ADJUSTABLE CO-DRIVER SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
38
A0028602869
FASTENER
78
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
79
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
96
A6329130011
PLATE
204
A6299430117
BUSHING
205
A6299430217
BUSHING BELT LOCK MOUNTING
206
A6299430317
BUSHING ATTACHMENT,SEAT BELT TONGUE
207
A6299510071
SCREWM10X32MM
210
A6299500476
SIDE MEMBER
212
A6299510823
SUPPORT
214
A6298601485
SEAT BELT RIGHT
214
A6298600485
SAFETY BELT RIGHT
215
A6299750222
GUIDE RAIL
216
A0019908120
SCREW W HEXAGON SOCKETM 8 X 16
218
A6299591217
BUSHING
220
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
222
A6299590815
PIN
224
A6299730417
BUSHING
226
A0009911725
WASHER
228
N000000000465
TAPPING SCREW LIGHT SWITCH 4.8X32
