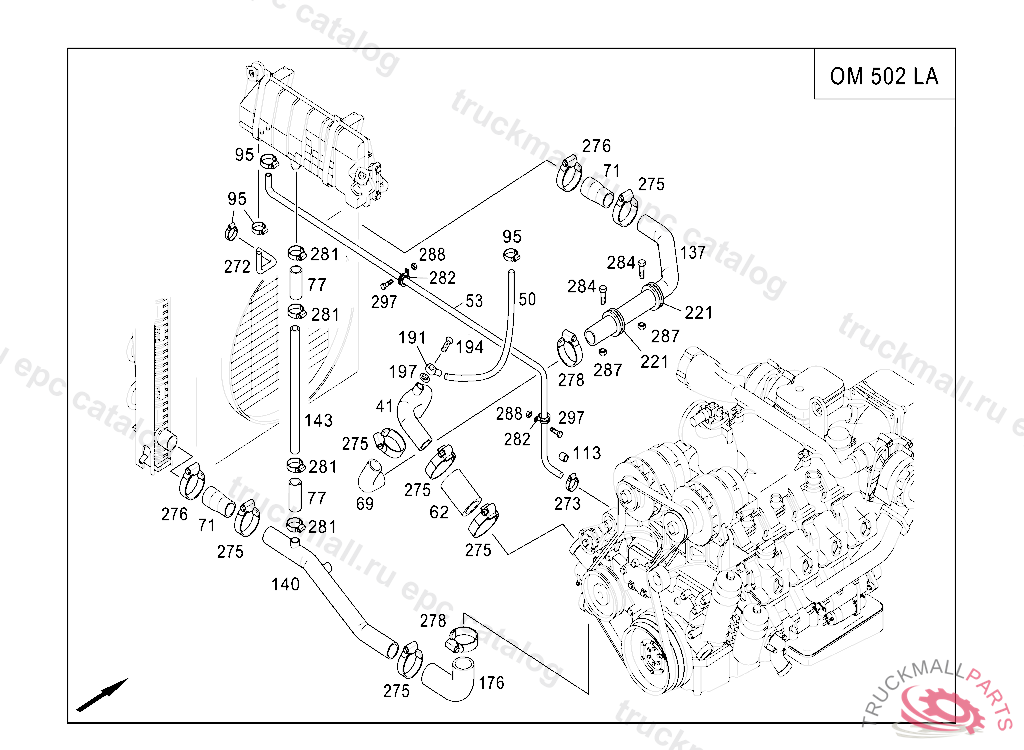

Поз.
Артикул
Описание
41
LINED60
50
HOSE
53
MOLDED HOSE NARROWED STRAIGHT SURFACE 22/15, EXHAUST STOCK OF OLD PART NUMBER FIRST
62
HOSE NARROWED STRAIGHT SURFACE 70/60MM
69
MOLDED HOSE 90-DEGREE ARC D60
71
MOLDED HOSE NARROWED STRAIGHT SURFACE 65/60
77
HOSE ,D 209702
95
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
113
THROTTLE
137
COOLING WATER PIPE FEED D60MM
140
LINE RETURN D60
140
COOLING WATER PIPE COOLING WATER RETURN D60MM
143
COOLING WATER PIPE38X1X60MM
176
MOLDED HOSE ARC REDUCED 90 DEGREES 70/60MM
176
MOLDED HOSE ARC REDUCED 90 DEGREES 70/60
191
BANJO UNION DE-AERATION LINE TO THERMOSTAT
191
BANJO UNION SUCTION LINE
191
BANJO UNION12/18MM
194
HOLLOW SCREWA15
194
HOLLOW SCREW , Replaced By: N915036015201
197
SEAL RING VALVE TO VALVE,K 025179
221
CLAMP60/25
221
CLAMP60/25RSGU
272
BLEED HOSE WITH CHECK VALVE 180MM
273
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
275
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
276
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
278
CLAMP
281
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
282
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
282
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 25/15 MM
284
SCREWM 10X20
287
NUT , Replaced By: N913023010002
288
NUT , Replaced By: N913023006001
288
NUT BRACKET TO SIDE MEMBER M12X1.5
297
HEXAGON HEAD BOLTM8X85
297
SCREW BRACKET AND CLAMP M6X20
