Mercedes A0006830006 - MONTAGERAHMEN

TRAVEGO EURO 6 632.400

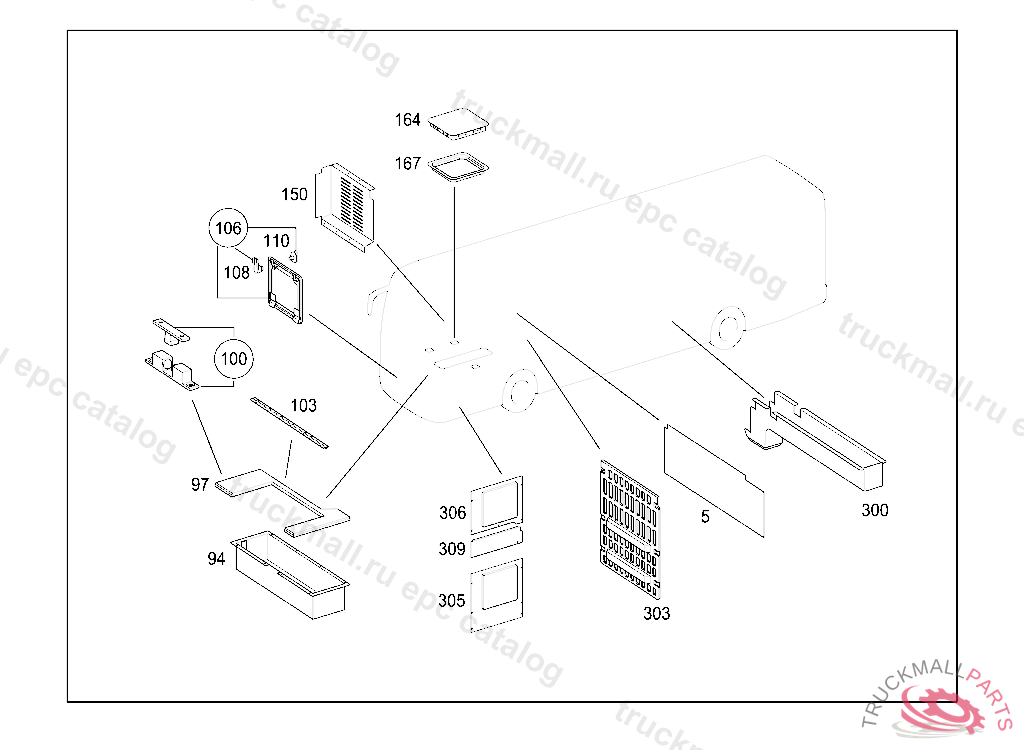

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
5
A6326870107
COVERING , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.05.2009
94
A6326800058
SHEET-METAL PAN
100
A0009883063
SNAP LOCK
103
A0006840152
HINGE STRAP32X0.7-3550MM, TO BE ADAPTED DURING ASSEMBLY
106
A6296801607
CLOSING COVER
108
A0009980695
ROTARY CATCH
110
A0009980595
ROTARY CATCH
150
A6326860307
COVER
164
A0006800323
SERVICING COVER
167
A0006830006
FRAME
300
A6296840477
PANELLING WATER PIPE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
303
A6326860607
COVER AT CROSS MEMBER 4
303
A6296860407
COVERING CROSS MEMBER 4
305
A6326803707
COVER
306
A6326820816
COVER ELECTRICAL COMPARTMENT
309
A6326820916
COVER ELECTRICAL COMPARTMENT
