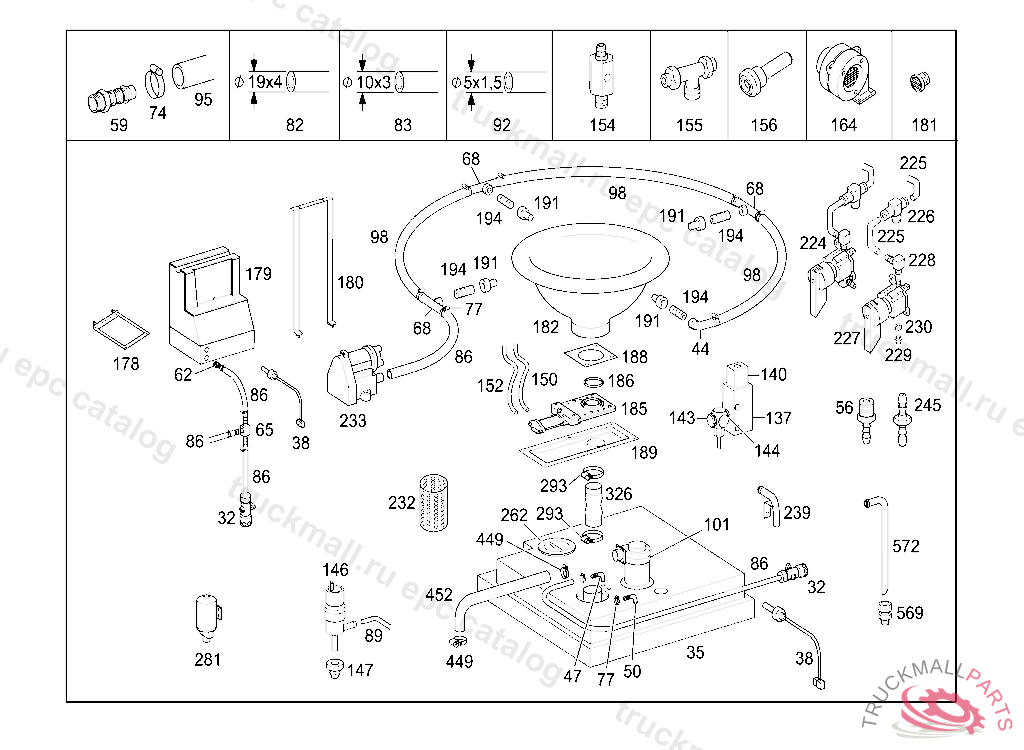

Поз.
Артикул
Описание
32
CONTROL STOP. FASTENER CONTROL STOP
35
RECEPTACLE FECES CONTAINER
38
SWITCH WASHER WATER LEVEL SENDER UNIT
44
FITTING ANGULAR SCREW FITTING 8 R1/4"
47
FITTING. ANGLE ANGULAR SCREW FITTING 19 R3/4"
50
ANGLE. FITTING ANGULAR SCREW FITTING 12/R1/2
56
FITTING SCREW-IN FITTING 6/R1/4
59
FITTING SCREW-IN FITTING 25/R1
62
FITTING SCREW-IN FITTING 12/R1/2
65
T-FITTING CONNECTION FITTING
68
FITTING T SCREW-IN FITTING
74
CLAMP20-32
77
CLAMP12-22
82
BRAIDED HOSE19 X 4, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
83
HOSE TRANSPARENT PVC WITH FABRIC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
86
HOSE PVC 13X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
89
PLASTIC PIPE RISING PIPE 4X6 MM
89
HOSE EVACUATION 6X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
92
HOSE5X1,5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
95
HOSE TRANSPARENT PVC WITH FABRIC 25 X 4,5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
98
HOSE COMPRESSED AIR HOSE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
BLOWER SOIL VENT
137
VALVE COMPLETE
140
VALVE (SOLENOID VALVE)
143
FITTING
144
SEAL
146
CENTRIFUGAL PUMP , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.12.2008
146
PUMP
146
CIRCULATION PUMP , Replaced By: A0008606226
147
SEAL PUMP TO RESERVOIR
150
HOSE BLUE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
152
HOSE NATURAL, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
154
CONNECTION FITTING
155
DISTRIBUTOR FOR HOSE 6 MM
155
T-FITTING
156
PLUG
164
IMPELLER BLOWER24V
178
FRAME SEGMENT
179
RESERVOIR FRESH WATER TANK
180
STRAP
180
BRACKET AT TANK
181
SCREW PLUG
182
WC FLUSHING TRAY
182
WC FLUSHING TRAY
185
SHUTOFF SLIDE
186
SEAL RING
188
ADAPTER
189
COVERING
191
NOZZLE FLUSHING NOZZLE
194
GROMMET
224
DRAIN VALVE
224
VALVE
224
DRAIN VALVE , Replaced By: A0008661152
225
HOSE EVACUATION 6X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
226
DISTRIBUTOR FOR HOSE 6 MM
227
VALVE
228
ANGLE SCREW-IN FITTING EVACUATION
229
SCREW-IN FITTING EVACUATION
230
SEALING RING EVACUATION
232
STRAINER
233
PUMP CHEMICAL FLUSH
233
WATER PUMP WATER FLUSH
239
PIPE PIECESPUEHLROHR KPL.WC/CC
245
FITTING REDUCTION FITTING
262
COVERING FECES CONTAINER
281
VALVE CONTROL STOP
293
CLAMP INTAKE MUFFLER TO BRACKET 90-110X12
326
HOSE
449
CLAMP
452
HOSE50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
569
SEAL CONE
572
TUBE
999
SEAL
999
COVER
999
SHAPED SECTIONPVCH - PROFIL GEBOGEN
999
SPIRAL SPRING
999
COMPRESSED AIR LINE
999
SOCKET-OUTLET220 V
999
FASTENER
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
999
LAVATORY TOILET CABIN
