Mercedes N304017008021 - АВТОЗАПЧАСТЬ

TRAVEGO EURO 6 632.400

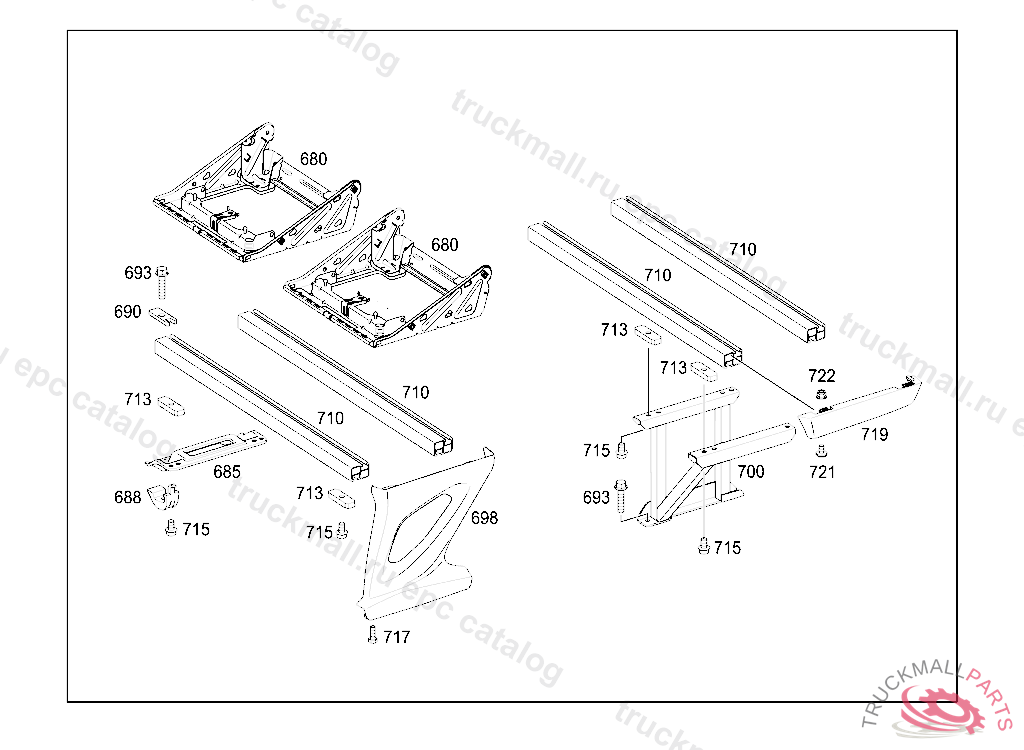

84 TRUNKS AND CASES - 150 KITCHENETTE IL. 2

Поз.
Артикул
Описание
680
A6069500027
SEAT FRAME UPPER PART
685
A6339510431
CONSOLE
685
A6069501033
CONSOLE LEFT
685
A6069501233
CONSOLE
688
A6069510212
ATTACHMENT ANGLE BRACKET
688
A6069514812
ATTACHMENT ANGLE BRACKET
690
A6339510611
REINFORCEMENT PLATE
693
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
698
A6069501718
SEAT BASE RIGHT
698
A6069507618
SEAT BASE LEFT
698
A6069507718
SEAT BASE RIGHT
698
A6069501618
SEAT BASE LEFT
700
A6069504718
SEAT BASE SEAT FRAME,LEFT AHEAD OF REAR
700
A6069504818
SEAT BASE SEAT FRAME,RIGHT AHEAD OF REAR
710
A6069510629
SUPPORTING TUBE
710
A6069510729
SUPPORTING TUBE
713
A6069510611
GUIDE PLATE
715
A6299590171
SCREWM 10 X 14
717
N304017008021
SCREW PIPE CLAMP
719
A6069510118
EDGE PROTECTION
719
A6069510018
EDGE PROTECTION LEFT
721
A0009901108
SCREW FOR T-CHANNELM8X20
722
N913023008003
NUT HORN TO BRACKET M8
