Mercedes A0008212914 - HALTER T-FUEHLER F.S

TRAVEGO M EURO 6 632.430

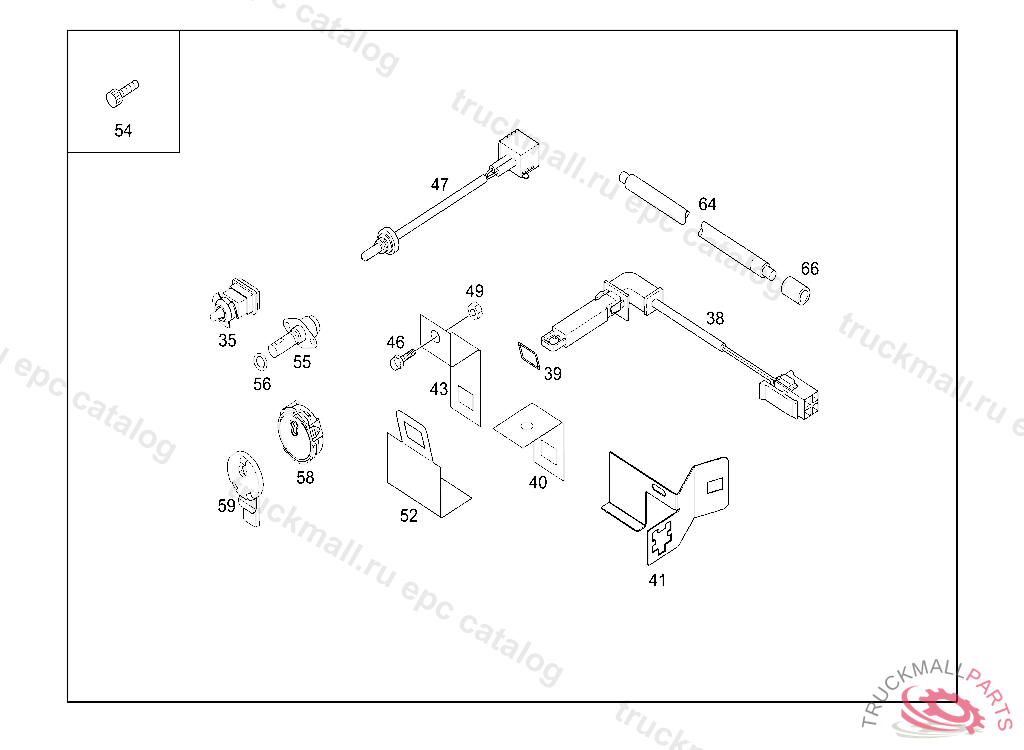

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 455 PRESSURE SWITCH, TRANSMITTER AND SENSORS IL. 2

Поз.
Артикул
Описание
38
A0078200810
TEMPERATURE SENSOR
39
A0269977048
SEAL RING
41
A0008214614
BRACKET TEMPERATURE SENSOR
43
A0008213014
BRACKET
46
N000000002925
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
47
A0078200610
SWITCH OUTBOARD TEMPERATURE FEELER
49
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
49
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
49
N000000006148
NUT-AND-WASHER ASSEMBLY. NUTM4
49
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
52
A0008212914
BRACKET GLUED VERSION
54
A0005450171
SCREW
59
A0035409545
CONTROL UNIT RAIN/LIGHT SENSOR
64
A0005463901
ELECTRICAL CABLE. ELECTRIC CABLE1X50MM2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
66
A0009970581
GROMMET5.0 MM
