Mercedes
BUS
TRAVEGO M EURO 6
632.430

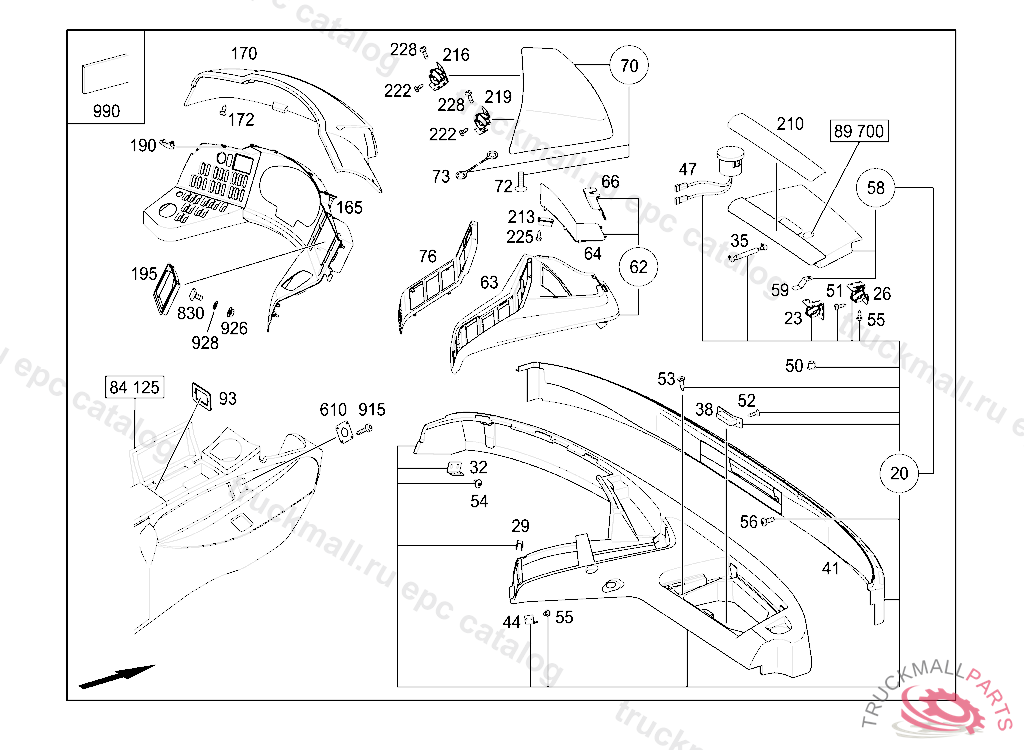

68 PANELLING AND LINING
330 INSTRUMENT PANEL IL. 3

Mercedes A6326874812 - BEFESTIGUNGSWINKEL

TRAVEGO M EURO 6 632.430

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 3

Поз.
Артикул
Описание
20
A6326805380
COWLING COCKPIT AREA
23
A0009930969
CUP HINGE LEFT
26
A0009931069
CUP HINGE RIGHT
29
A6326871612
ATTACHMENT ANGLE BRACKET
32
A6326874812
ANGLE
35
A6329800064
SPRING
38
A6327580349
FALLING LATCH
41
A6328302323
AIR DUCT
44
A6326874912
ANGLE
47
A6328200110
REED CONTACT SWITCH
50
A0009879645
COVER CAPD12,7MM
51
N000000000447
TAPPING SCREW BRACKET MOUNTING
52
N000000000477
TAPPING SCREW3,5X16MM
53
N000000000492
TAPPING SCREW
54
N000000000520
TAPPING SCREW BRACKET TO SUPPORT
55
N000000000446
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
56
N000000000461
TAPPING SCREW MOUNTING PARTS 4.8X16
58
A6326803007
COVERING DEEP FREEZER
59
A6329880743
LATCH TONEUE
62
A6326800917
MOLDING FOR SWITCH FLAIR
62
A6326801017
MOLDING FOR SWITCH FASHION
63
A6326800717
COVERING FASHION
63
A6326800617
COVERING FLAIR
64
A6326830010
COVER FLAIR
64
A6326830110
COVER FASHION
66
A6326892608
COVERING FLAIR
66
A6326892908
COVERING FASHION
70
A6326800096
COVER
72
N000000001474
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M6X10, Replaced By: A0019844329
73
A6329880275
HOLDING ROPE
76
A6326803555
BEAM FASHION
76
A6326803655
BEAM FLAIR
93
A6326870611
FASTENING PLATE
210
A6326890070
HANDLE FASHION
210
A6326890170
HANDLE FLAIR
213
A0006890603
MAGNET
216
A0009930969
CUP HINGE LEFT
219
A0009931069
CUP HINGE RIGHT
222
N000000000446
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
225
N000000000475
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
228
N000000001946
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M4X12,V 202043
610
A0008222914
BRACKET FOR SOCKET
915
N000000000879
TAPPING SCREW2,9X13
