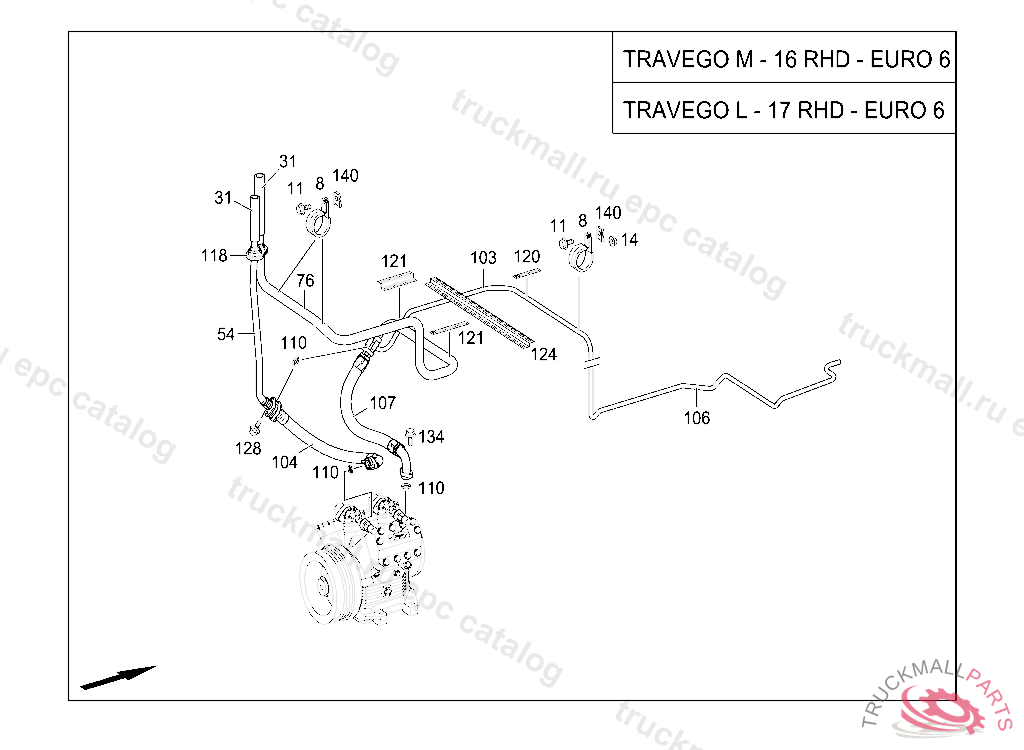

Поз.
Артикул
Описание
8
CLAMP42/20
8
CLAMP35/20
8
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
8
MOUNTING CLAMP AT SUPPORT 30/15MM
8
MOUNTING CLAMP16/15
8
CLAMP38/20
8
CLAMP25/20MM
8
CLAMP28/20MM
8
CLAMP10/15
8
MOUNTING CLAMP22/15
8
MOUNTING CLAMP28/15
11
SCREW , Replaced By: N910143008002
11
SCREW , Replaced By: N914146006102
11
SCREW BRACKET AND CLAMP M6X20
11
SCREW BRACKET TO CAB REAR PANEL M 8X20
14
NUT , Replaced By: N913023006001
14
NUT HORN TO BRACKET M8
31
INSULATING HOSE36,5X47MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
31
INSULATING HOSE28MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
31
INSULATING HOSE22X32MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
31
INSULATING HOSE12X26MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
54
REFRIGERANT LINE DELIVERY LINE
54
REFRIGERANT LINE DELIVERY LINE
76
REFRIGERANT LINE SUCTION LINE
76
REFRIGERANT LINE SUCTION LINE
103
REFRIGERANT LINE
104
REFRIGERANT LINE 90 DEGREES NW25/700MM
104
REFRIGERANT LINE COMPRESSOR NW20/700MM
106
REFRIGERANT LINE
107
REFRIGERANT HOSE
107
REFRIGERANT HOSENW32
110
GASKET34X42 MM
118
FEED-THROUGH GROMMET
120
RAIL LINE MOUNTING 115 LG.
121
"Z" SECTION170MM
124
"Z" SECTION775MM
128
SCREW AXLE HOUSING TO REAR SUBFRAME,FRONT
128
CAP BOLT (INTERMEDIATE PIECE WITH PULLEY) ON VIBRATION ABSORBER M 10X80
128
CAP BOLT. SCREW BELT TIGHTENER TO SUPPORT M10X50,*0211352
128
SCREW IMPELLER TO COVER
134
SCREW BRACKET TO SIDE MEMBER M10X35
140
NUTM8
140
LOCK NUT. SPRING NUT MOUNTING PARTS
140
LOCK NUT. SPRING NUT STEP TO ENTRANCE
999
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
